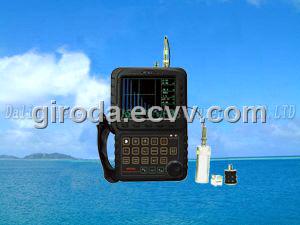

Digital Ultr-Flaw Detector MFD500

Inquiry Now

Specifications

SPECIFICATIONS:

Range: (0 ~ 9999) mm
Bandwidth: (0.5 ~ 15) MHz
Material Velocity: (1000 ~ 9999) m / s
Dynamic Range: ≥ 32dB
Vertical linear error: ≤ 3%
Horizontal linear error: ≤ 0.2%
Resolution:> 40dB (5P14)
Sensitivity Leavings: 60dB (flat-bottomed deep hole 200mmФ2)
Rejection: (0 to 80)% Linear
Noise level: ≤ 10%
Power supply: DC 9V; lithium batteries work for 4 to 8 hours or more
Ambient temperature: (-20 ~ 50) ℃
Relative Humidity: (20 ~ 95)% RH
Overall dimensions: 263 × 170 × 61 (mm)
