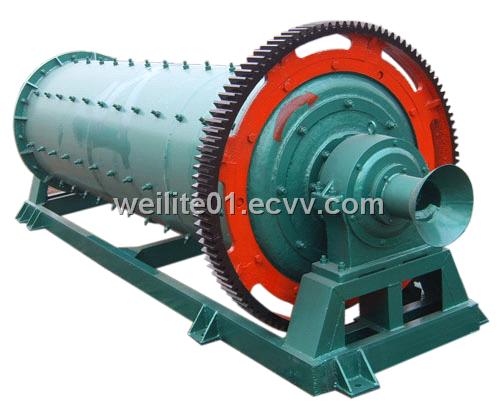

Ball Mill Machine for Grindng Concret Metal and Ore

FOB Price:	5,000.00 - 217,000.00 USD/Piece
Supply Ability:	100 Piece/Pieces per Month
Shipping:	upon your confirmed order,mainly in 10~30days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard Export Package

Specifications

Ball Mill Machine Function

It is widely used in dressing ,building material,chemical industry to grind medium hard ore and other materials.According to different grinding ways ,there are dry ball mill and wet ball mill types according to different discharging methods ,there are lattice type and overflow type ;according to different grinding media ,there are ball mill and rod mill ;according to the structure types ,there are traditional type ,straight energy-efficient and cone energy-saving .The energy- saving ball mill adopt rolling instead of the traditional bearing easy to start ,saving power 10%-15% .The cone energy-saving mill in addition to the change on bearing parts ,adopt cone design on the discharge end ,the ball materials at cone end are forced to natural classification during the working , much closer to the outlet ,much smaller the ball diameter will be ,increasing the grinding times ,more significant the energy savings .

The Operation principle of Ball mill

The materials are sent to the first position of the mill .There are step liner and corrugated liner with the ball in it of different specifications .When the cylinder moves ,the ball are brought to a certain height by the centrifugal force then fall down to hit and grind the materials in the warehouse .So the bulk materials get the first step coarse grinding in the first warehouse .Then the materials get into the second warehouse with flat liner and balls to get further grinding .It is also called fine grinding .The powder materials will be discharged through the two steps operation .

Ball Mill Specifications :

Type	Shaft Rotation Speed (r/min)	Ball Load (t)	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight(t)
MQJ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
MQJ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
MQJ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
MQJ1200×3000	32	5	≤25	0.074-0.4	1.6-5	45	12.8
MQJ1200×4500	32	7	≤25	0.074-0.4	1.6.5.8	55	13.8
MQJ1500×3000	27	8	≤25	0.074-0.4	2-5	90	17
MQJ1500×4500	27	14	≤25	0.074-0.4	3-6	110	21
MQJ1500×5700	27	15	≤25	0.074-0.4	3.5-8	132	24.7
MQJ1830×3000	24	11	≤25	0.074-0.4	4-10	180	28
MQJ1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
MQJ1830×6400	24	23	≤25	0.074-0.4	6.5-15	210	34
MQJ1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
MQJ2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	210	34
MQJ2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
MQJ2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
MQJ2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
MQJ2200×6500	21	31	≤25	0.074-0.4	14-26	380	52.8
MQJ2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	54
MQJ2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	56
MQJ 2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	65
MQJ 2700×4000	20.7	40	≤25	0.074-0.4	12-80	400	94
MQJ 2700×4500	20.7	48	≤25	0.074-0.4	12-90	430	102
MQJ 3200×4500	18	65	≤25	0.074-0.4	Set According to the Technology	800	137
