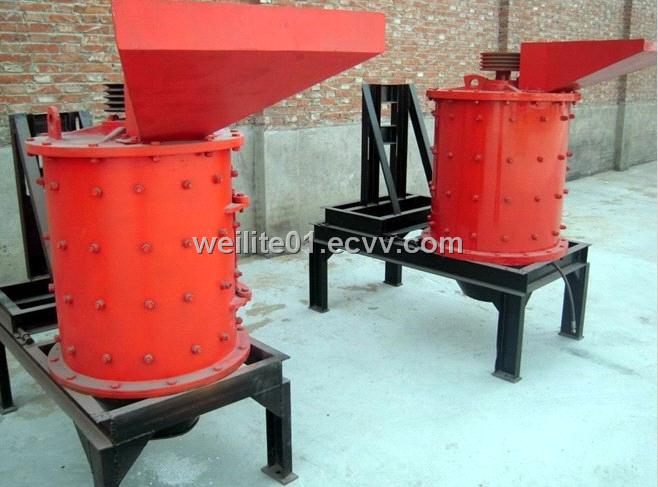

Best Selling Vertical Grinder Manufacturer

Supply Ability:	120 Set/Sets per Month
Shipping:	upon your confirmed order,mainly in 10~30days
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

HGM Series Calcite Grinding Machine

Price:

Min. Order:1 Set
Mechanical Automatic Knife Grinder Model DMSQ-C

Price:

Min. Order:1 Set
Rotary Metal Working Machine

Price:

Min. Order:1 Set
Ball nose endmill grinder

Price:

Min. Order:1 Set
Vertical Manual Belt Sanding Machines

Price:5,000.00-6,500.00 RMB/Set

Min. Order:1 Set
Gold ore beneficiation machine of cone wet grin...

Price:4,000.00-10,000.00 USD/Unit

Min. Order:1 Unit
Internal Grinding Machines (M2120A)

Price:10,000,000.00-20,000,000.00 Negotiable/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard Export Package

Specifications

Detailed Product Description

1.Super quality and high efficiency.
2.Environment friendly.
3.Competitive price.
4.Energy saving.

1.Introduction of Vertical Grinder:

The grinder variety very are many,affects the majority of same.Our factory production to have WLS mouse cage type,WLH link hammer type,WLL stand type and soon.The machine main function is broken becomes the massive material request to results in the granularity.

2.Structure of Vertical Grinder:

Structure from the next frame,chassis,up and down the shaft seat,spindel,hammer,hammer holder,pulleys,motor frames and other parts.Powered by V-belt driven spindle,spindle are of two bearing,bearing installation in the case of top and bottom,chassis assembly installed in the next rack, the spindle is equipped with a hammer,hammer holder,hopper mounted on the chassis for easy disassembly and maintenance.

3.Advantage of Vertical Grinder:

1)Simple structure, low running costs.The use of stone at stone works,wear small.

2)Crushing rate,energy saving.

3)Has a crushing,coarse grinding function.

4)The moisture noise below 75 decibels(db level),dust pollution.

6)For crushing of hard,special hard material.

7)Products into a cube,packing density,iron contamination is minimal.

8)Impeller from the lining wear is small,easy maintenance.

4.Working principals of Vertical Grinder:

Material from the inlet into the chassis and high-speed rotation of the collision case,the material upon impact,squeezing and crushing,and then crash back to the enclosure wall and then collided with the hammer,so that the whereabouts of the process after several changes in the impact or 3mm below the powder particles discharged from the bottom.

5.Main technical parameters of Vertical Grinder:

Name	Standard (mm)	Feed size (mm)	Discharge size (mm)	Capacity (t/h)	Speed (r/min)	Power (kw)	Overall dimensions (long×wide×high)	Weight (kg)
Stand	WLL650	≤30	≤3	8-10	1150	Y200L-4-22kw	1650×900×1300	1900
Stand	WLL750	≤30	≤3	15-25	1100	Y225L-4-37kw	1500×1050×1600	2500
Stand	WLL1000	≤30	≤3	30-35	1100	Y225l-4-45kw	1800×1270×1900	3000
Link hammer	WLH650	≤30	≤3	10-15	1050	Y180L-4-22kw	1300×1320×1635	2100
Link hammer	WLH850	≤30	≤3	30-35	1050	Y250M-4-40kw	2250×700×2400	3600
Vage	WLS800	≤30	≤3	10-15	950(big) 870(small)	15 18.5kw	1800×1165×1100	2000
Vage	WLS1000	≤30	≤3	20-30	950 850	45 55kw	2700×2080×1300	2900
