Home  >Products Catalog > Aerial Platform Truck > 20m Dongfeng Aerial Bucket Truck for High Altitude Working

20m Dongfeng Aerial Bucket Truck for High Altitude Working SafeBuy Supplier Member

FOB Price: 60,000.00 - 65,000.00 USD/Set
Supply Ability: 20,000 Set/Sets per Year
Shipping: Bulk shipment or Ro-Ro shipment
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hubei in China
Packaging Details: Waxed , Bulk shipment or Roro shipment

Specifications

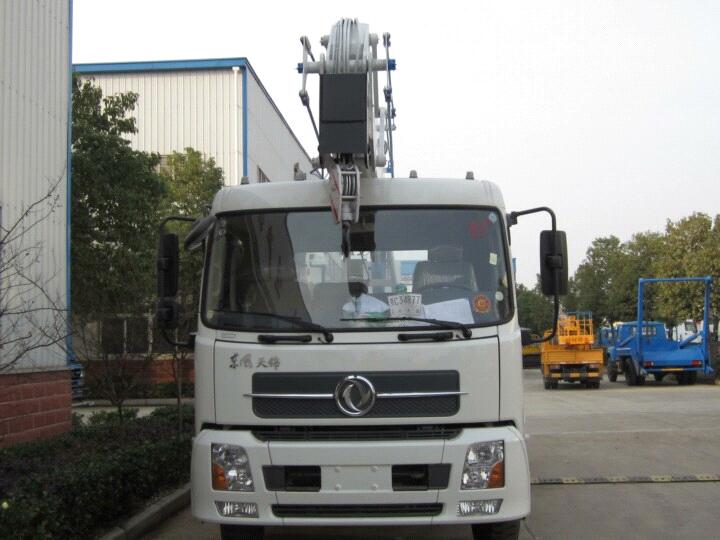

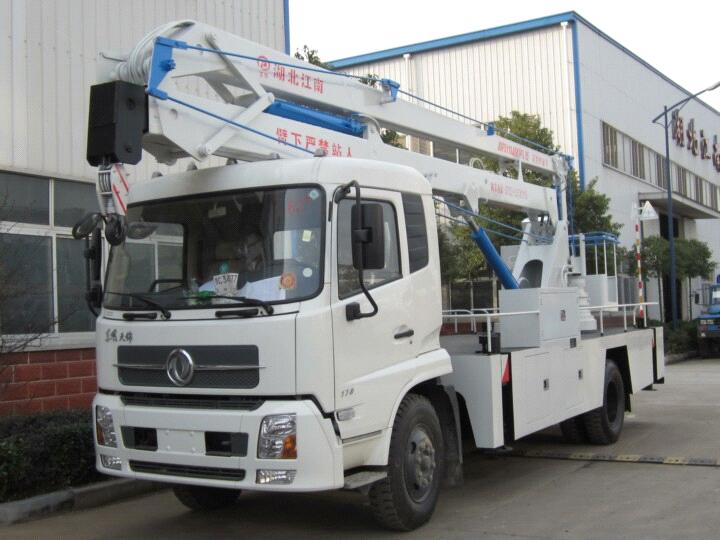

20M DongFeng Aerial Bucket Truck For High Altitude Working
1. Cummins engine of Aerial Boom Lift Truck
2.3 section of articulated booms, 4 outriggers
3. Aerial Boom Truck equipped with hook
4. CCC

High altitude operation truck work height from 12m to 24m , wide range for customer choose.

All our overhead working truck passed CCC , and have a good after sale service.

Brand
Jiangte

Vehicle name
20M DongFeng Aerial Bucket Truck
Engine model
B170 33
Engine make
DongFeng Cummins Engine
Engine displacement(ml)
5900
Engine power(kw)
125
Overall dimension(L*W*H)(mm)
9400× 2498× 3790

G.. V.W. (Kg)
10950

Curb weight(kg)
10755
Payload weight(kg)

Approach/Departure angle
20/12
Front/Rear suspension
1430/2960
Wheelbase(mm)
5000/4700
Axle load
4320/6630
Axle number
2
Leaf spring
7/9+6,8/10+8
Tire number
6
Tire size
9.00-20,10.00-20
Front track
1880
Rear track
1800
Chassis model
DFL1120B
Upper load parameter
Max working height
20m
Max bucket floor height
18.3m
Max work radius
8.4m
Bucket load
200kg
Hook load
Optional , Hook load capacity 1Ton
Traffic warning light
Optional
Boom type
3 section of articulated boom, 360° rotation
Outriggers
4Pcs , H type



For more information pls kindly leave a message or feel free to contact:
