Jiaxing Jingkong Electronic Co., Ltd.
China Manufacturer with main products: Quartz Monitor Crystal, QCM, Sensor, Replce the Crystal of Inficon, Telemark, Satisloh, Filtech, ULVAC |

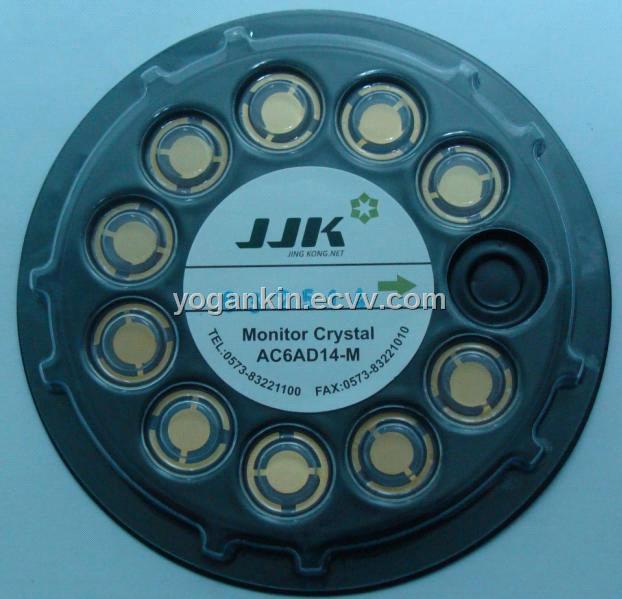

Quartz monitor crystal
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
|
Specifications
|
AC6AD14-F
|
AC6AD14-M
|
|
Marking Frequency
|
6.000MHz
|
|
|
Nominal Frequency
|
5.983MHz
|
|
|
Adjustment Tolerance
|
±7KHz@25℃
|
|
|
Crystal Cutting
|
AT
|
IT
|
|
Oscillation Mode
|
Foundation Mode
|
|
|
Resonance Resistance
|
﹤15Ω
|
|
|
Shunt Capacitance
|
﹤7pF
|
|
|
Operating Temperature
|
0℃～+70℃
|
|
|
Storage Temperature
|
﹣40℃～+105℃
|
|
|
Diameter
|
13.97mm±0.03mm
|
|
|
Electrode of Plane Side
|
Chrome(Cr)/Gold(Au)
|
|
|
Electrode of Convex Side
|
Chrome(Cr)/Gold(Au)
|
|
|
Packing
|
10crystals/disc & 5crystals/box
|
|
|
Appearance
|
2 anchors
|
|
