Aerofoil Aluminium Sun Louvre

FOB Price:	50.00 - 100.00 USD/Square Meter
Supply Ability:	90,000 Square Meter(s) per Month
Shipping:	shipping port: GUANGZHOU, FOSHAN, SHENZHEN 15 days after order confirmation
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	strong export carton or on request

Quick Details

Material: Aluminum Alloy
Model Number: MCT-AF300
Brand Name: M-CITY
size: 100-600mm
Surface treatment: powder coated, PVDF
installation: horizontal/vertical

Specifications

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	from 1000mm-7000mm
Thickness:	from 1.0mm-3.0mm
:	Powder coated, flurocarb paint, Anodized
Color:	Any RAL colors and wooden grain colors are available.
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Raiway station, Office, Residential, etc.

Installation ways Reference
A	Fix to the support frame with screw
B	Using Bracket and screw to the support frame
C	Using the Endcaps to fix on two ends
D	as per Architect'S design

M-CITY Aerofoil/Airfoil Louver blade series

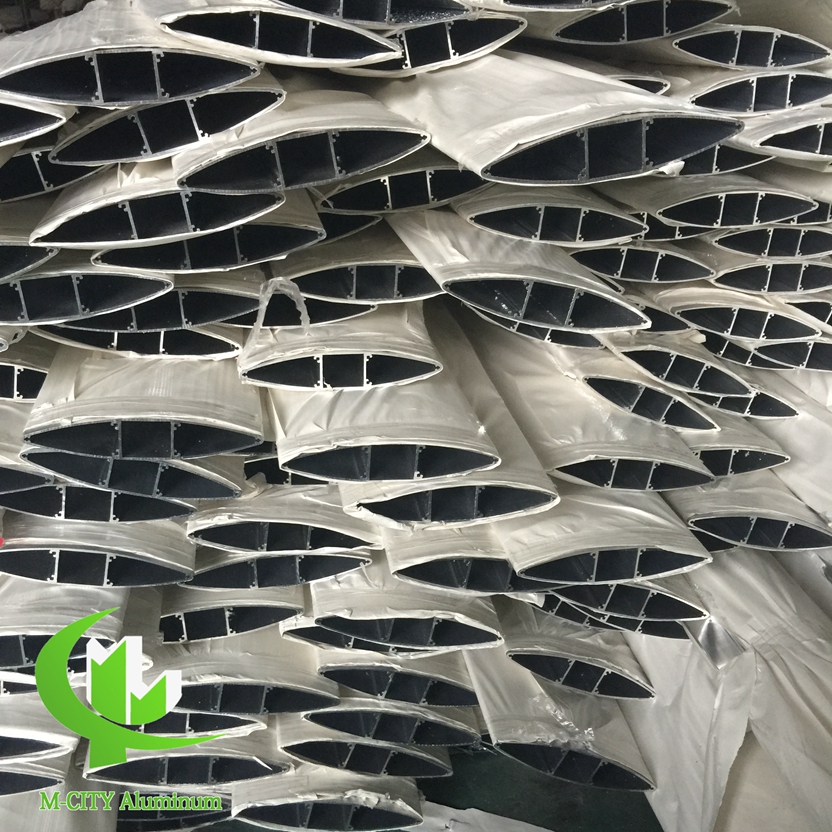

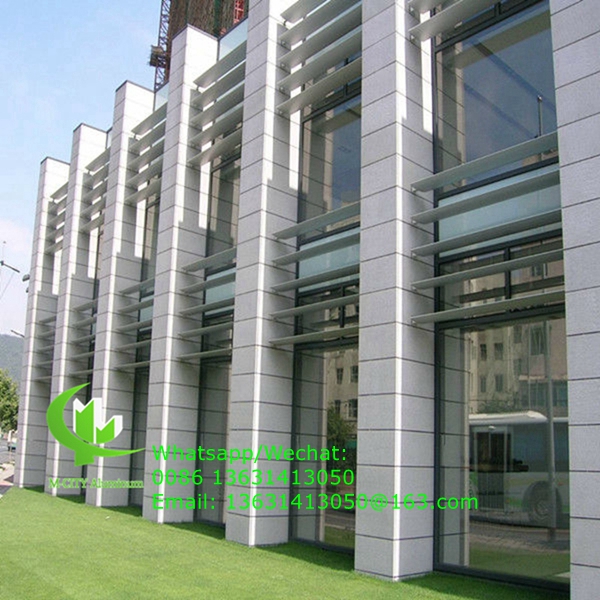

the M-CITY aerofoil (fin) louvers are based on Aluminum extrusion profile (6063-T5/T6). most are ellipse shape aluminum profile. Deflect thermal gain from incident sun, integrating light control into the building envelope. Not only they deliver outstanding functionality, but will also help architects create a distinctive look for the building surface. Well-designed louver configurations can be as striking as they are effective, shading the facade against low or high sun angles while making an aesthetic statement. As with any system, design considerations such as louver size and composition will affect performance.

It can help you improve the energy efficiency of your projects.

M-CITY aerofoil louvers blade width from 100 mm to 500 mm tip to tip. Extruded louvers are more durable. More strength. Louver shapes, composition, and finish also can be used to create specific daylighting effects as well as establishing a different aesthetic. - Fabricated louvers can be created at nearly any size. - Aerofoil composition is typically metal (aluminum ), but many other options exist, including glass and wood. - M-CITY metal louvers typically have finishes include polyester powder coating and flurocarbon painting (PVDF paint) and Anodized. All resist damage to sun or weather.
