Home >Products Catalog > other products > USB3.0 TO Dual Sata Adapter

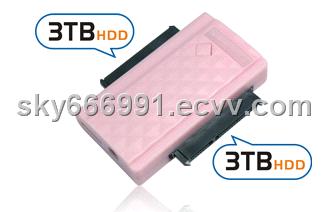

USB3.0 TO Dual Sata Adapter

FOB Price:	12.00 - 13.00 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	By vessal or by air
Payment Terms:	L/C, T/T, D/P, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

6w Interchangeable AC Plug Energy Star Level VI...

Price:3.00-6.00 USD/Acre

Min. Order:200 Acres
HID kit install adaptor

Price:1.00-3.00 USD/Set

Min. Order:50 Sets
HDMI Female to Female 90 degree adaptor

Price:0.41-0.44 USD/Piece

Min. Order:500 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	color box package

Specifications

Manual

l Chipset: PL2773 .

l Support Dual or Single HDD (support HDD capacity up to 3TB)

l Power adapter: INPUT AC100-240V MAX 1.5A OUT PUT DC 12V 3A

l Display Two HDD, Corresponding HDD LED Flash when read and write. Press HDD Stacked levels, HDD 1 on above, HDD2 in below.

Six 3MM LED indicate, respectively power, data transfer instructions, instructions for offline cloning ect.

l Power saving management: While the HDD isn’t in reading and writing status, It shouldn’t be run, and it is sleeping status for saving power.

User Manual:

1.Install HDD

HDD connect SATA interface indirectly

2. Offline cloning function

As you don’t connect with PC and the DISK1 capacity is less than or equal DISK2.When power supply ,waiting for the drive and boot normally , press the SW1 button on the board,4LED indication for racing .The cloning operation begin , until the first LED light to live, and the remaining three LED is still racing ,explained that it had cloned 25%;Second LED is also lit to live ,the other two LED are still racing ,explained that it had cloned 50%;the Third LED is also lit to live ,the last one LED is still racing ,explained that it had cloned 75%;Four LED light are live shows have been cloned successfully.

When HDD1 capacity is more than HDD 2, DATA LED will light .Indicate the hard disk errors, swap HDD. When the cloning process. It is wrong, DATA LED will light .Please contact or check the hard drive power supply situation weather is ok or not.

3.OTB function

Install OTB software, open ONE BUTTON icon, set the backup direction .In accordance with its instructions and select the appropriate backup. Click on BT1 button can finish data backup.

4.Work

DC IN insert power adapter, turn power switch, then insert the USB3.0 or USB 2.0 cable, you can use in normal.
