JIS F7302/F7304 Marine Valve- Bronze or Brass Angle Valve 5k 16k

FOB Price:	1.00 - 2.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Shipping:	Qingdao Port
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	3 ply-wooden box

Quick Details

Brand Name: VG
Temperature of Media: Low Temperature
Material: Brass
Pressure: Low Pressure
Standard or Nonstandard: Standard
Model Number: F7302 F7304
Port Size: 15-65
Media: Water
Power: Manual
Structure: Stop

Specifications

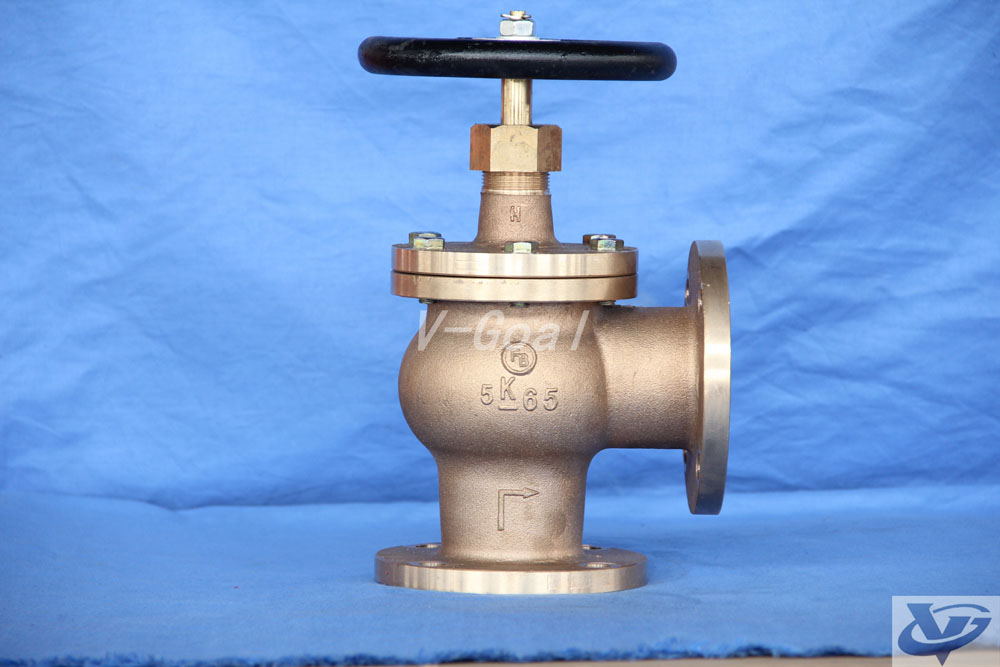

JIS F7302F7304 Marine valve Bronze or Brass Angle valve

1)F7302-Marine Bronze 5K Globe Angle valve

Nominal pressure; 5K(0.49Mpa)

DN 15, 20, 25, 32, 40, 50, 65

2)F7304-Marine Bronze 16K Globe Angle valve

Nominal pressure; 16K(1.56Mpa)

DN 15, 20, 25, 32, 40

1.End Type; Flange

2.Angle Type

3. Main material;

Body/Bonnet/Disc;BC6; or brass

Stem; Brass C3771BD;

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:Such valves are used for on-off duty and regulating the flow rate.

Jis valve manufacturer in Qingdao China
Jis marine valve 5k 10k 16k 20k 30k 40k
Jis marine cast iron valve
Jis marine cast steel valve
Jis marine bronze valve
Jis marine globe valve
Jis marine gate valve
Jis marine swing/lift/sdnr check valve

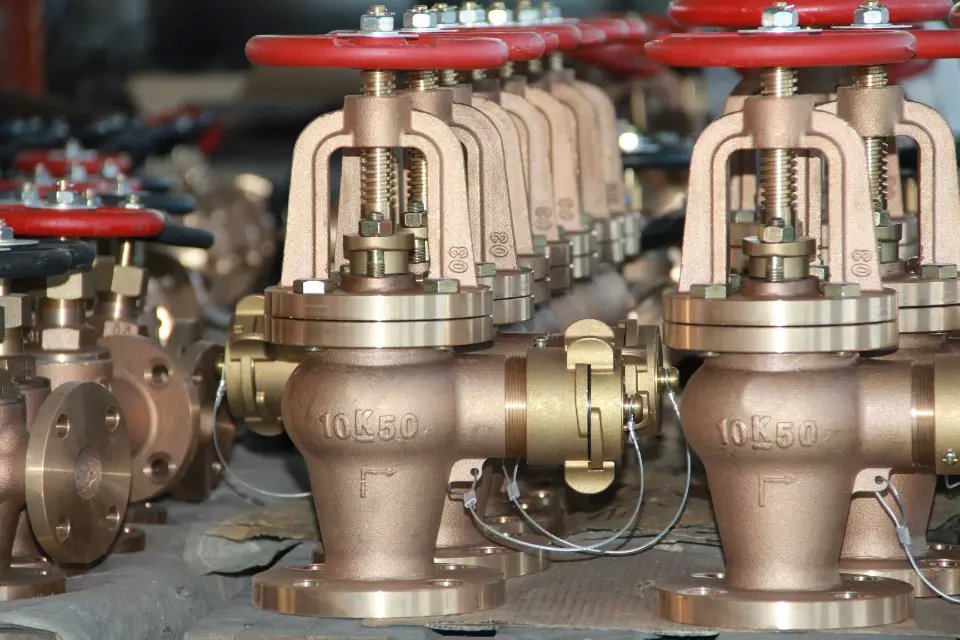

Jis marine hose valve
