>Products Catalog > LED Tube Light > Non-isolated Low Voltage and High Current LED T10 Tube Driver (15-30W)

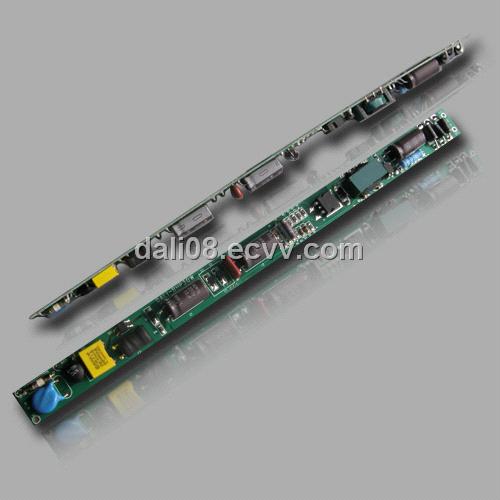

Non-isolated Low Voltage and High Current LED T10 Tube Driver (15-30W)
| FOB Price: | 2.70 - 2.88 USD/Piece |
|---|---|
| Supply Ability: | 15,000 Piece/Pieces per Day |
| Shipping: | Air/Sea Shipment |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Cartons |
Specifications
Input voltage: 170-240V Output voltage: 40-80V Output current: 430mA Power:15-30W PF:>0.96 Efficiency:88-90% Dimension (L x W x H): 275*18*10mm
Key Specification
-
Features:
- Universal AC input and full range
- Protections: OCP and SCP
- Driving 24pcs LEDs in parallel 12-25 pcs LEDs in series
- Dielectric strength: 1.5kV AC, leakage current 5mA, 60 seconds
- Built-in non-isolated constant current LED drivers
- Low-noise and environment-friendly
- Use highly efficient, steady and low-loss switch control chip
- Burn-in test: 100% for at least 4 hours under working temperature of 40°C
- Application: LED tube Lights
-
Technical data:
- Power: 15-30W
- Input voltage range: 170 to 240V AC
- Frequency: 50 to 60Hz
- Power factor: 0.96 (typical)
- Power efficiency: 88-90%
- Output voltage: 40 to 80V DC
- Output current: 430mA (typical value), 443mA (maximum)
- Operating temperature: -40 to 65°C
- Humidity: 35 to 80% RH
- MTBF calculation: up to 50,000 hours lifetime
-
Mechanical specifications:
- Naked PCB or plastic housing
- Dimension (L x W x H): 275*18*10mm
- Weight: 80g (for naked boards)
