Beijing Torch Co., Ltd.
China Manufacturer with main products: Pick and Place Machine, Reflow Oven/Welding Machine, Stencil Printer, PCB Plate Machine, Wave Soldering |

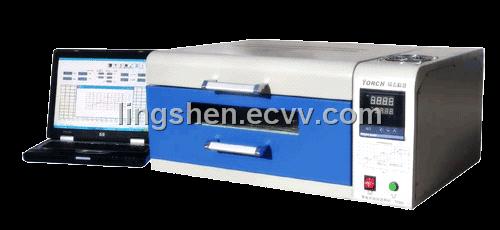

Desk Top Intelligent lead-free Reflow OvenT200C
| Supply Ability: | 20 Set/Sets per Month |
|---|---|
| Shipping: | delivery time :about 5days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Wooden Packing ,about 50KG ,730* 520* 360mm |
Specifications
|
||||||
|
[Remark]:
ROHS directive has publicized. During the welding process with lead-free, all of the electron manufacturers are thinking one question how to ensure the quality of lead-free welding.It is all known that the lead-free welding is more difficult than lead welding in welding technic and quality control.In the century with lead-free,Torch applies itself to search the way how to satisfy the product with the trial-manufacture of lead-free welding and the manufacture of small batch and high quality for many years.
According to the practical requirement of small and middle sized electron factory, the small batch trial- product in research center .T200C is designed and manufactured by Torch technologists on the basis of technical accumulation for many years. It has many specialties such as high precision, multi-function; practicality; steady capability; long life; energy-saving with high efficiency; viewable operation. It adapts to the research and production in research center, war industry, middle and small-sized corporation, small Private Corporation and other electronic production companies
|
||||||
Technical instruction
A: Temperature control segment: 40 segment
The segment can be set in computer according to the actual requirement.
B: Temperature-zone numbers : Single-zone and multi-segment
C: Temperature control system: PC control system ,SSR non-contact output
D: Temperature accuracy : ± 2 ℃
E: Warm-up time: 3min
F: Temperature range :Room-temperature -360 ℃
G: Heating supply :Infrared ray + Hot air convection
H: Effective working table area: 360mm * 230mm (less than A4)
I: Welding time : 3min ± 1min
J Temperature curve: It can be set ,adjusted and tested according to the actual requirement .
K: Cooling system: Transverse flow equal cooling
N: Rated voltage: AC single-phase, 220V; 50Hz
O: Rated power : 3.8KW Mean power: 1.6kw
P: Weight: 39 kg
Q: Dimension :Length＊width＊height 700 ′ 460 ′ 310mm
The segment can be set in computer according to the actual requirement.
B: Temperature-zone numbers : Single-zone and multi-segment
C: Temperature control system: PC control system ,SSR non-contact output
D: Temperature accuracy : ± 2 ℃
E: Warm-up time: 3min
F: Temperature range :Room-temperature -360 ℃
G: Heating supply :Infrared ray + Hot air convection
H: Effective working table area: 360mm * 230mm (less than A4)
I: Welding time : 3min ± 1min
J Temperature curve: It can be set ,adjusted and tested according to the actual requirement .
K: Cooling system: Transverse flow equal cooling
N: Rated voltage: AC single-phase, 220V; 50Hz
O: Rated power : 3.8KW Mean power: 1.6kw
P: Weight: 39 kg
Q: Dimension :Length＊width＊height 700 ′ 460 ′ 310mm
