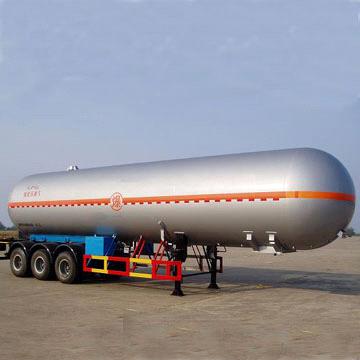

LPG SEMI -TRAILER TRUCK
| FOB Price: | 30,000.00 - 50,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | within 30 days since receive the deposit |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Specifications
LPG SHIPMENT TANK
|
ITEM
|
PARAMETER
|
ITEM
|
PARAMETER
|
||||
|
|
Size(mm)
|
12740×2480×3950
|
|
Design Pressure
|
2.16Mpa
|
||
|
Total Weight(Kg)
|
40000
|
Max. Working Pressure
|
1.94Mpa
|
||||
|
Rated Loading Capacity(Kg)
|
21345
|
Design Temperature
|
50℃
|
||||
|
Gross Weight (Kg)
|
18555
|
Seruice
|
LPG
|
||||
|
Rear Suspension(mm)
|
-/1590
|
Corrosion Allowance
|
1.0mm
|
||||
|
Approach/Departure Angle
|
-/20
|
Dimension
|
50m3
|
||||
|
Axle Weight
|
21345/23925(Three Axle)
|
Heat Treatment
|
As a whole
|
||||
|
Axle
|
3
|
Size of Tank
|
12372×2332mm
|
||||
|
Wheel base
|
6800+1310+1310mm
|
Weight of Tank
|
12875kg
|
||||
|
Tyre Nos
|
12
|
Filling Ratio
|
420kg/m3
|
||||
|
Tyre kind
|
12.00R20, 12.00-20
|
Material of Tank
|
16MnR
|
||||
|
Front/Rear Tread
|
-/1840mm
|
Relief Valve
|
Model
|
A412F-2.5-80
|
|||
|
No. of Spring
|
-/8/8/8
|
Type
|
Build-in wide type
|
||||
|
Content Gauge
|
Model
|
ZGM2.3/2.5
|
Nominal Pressure
|
2.5 Mpa
|
|||
|
Type
|
Turning Tube Type Liquid Level Gage
|
Nominal diameter
|
DN50
|
||||
|
Pressure
|
2.5Mpa
|
Opening Pressure
|
2.27-2.37 Mpa
|
||||
|
Indication Range
|
50-2300mm
|
Reseating Pressure
|
≥0.8 times of opening pressure
|
||||
|
Precision
|
2.5
|
Handling Device
|
Model
|
Gaseous Phase
|
YKAG-3.3-6
|
||
|
Emergency Shutoff Device
|
Model
|
Gaseous Phase
|
QGJ43F-2.5-8
|
Liquid Phase
|
YKAG-3.3-7
|
||
|
Liquid Phase
|
QGJ43F-2.5-7
|
nominal diameter
|
Gaseous Phase
|
DN25
|
|||
|
Nominal Diameter
|
Gaseous Phase
|
DN25
|
Liquid Phase
|
DN50
|
|||
|
Liquid Phase
|
DN50
|
Nominal Pressure
|
3.3Mpa
|
||||
|
Operation Mode
|
Mechanical Type
|
Model
|
Quick coupling type
|
||||
|
Welding Shutoff Temperature
|
70±5℃
|
Standard
|
GB150-1998
|
||||
|
Model
|
emergency shut(off) valve and overcurrentlimiting valve Combination
|
Supervision regulation on safety technology for pressure vessel
|
|||||
|
Closing Time
|
≤10s
|
LPG vehicle supervision regulation on safety technology
|
|||||
|
|
Others
|
Fuwa(13ton), JOST legs, ABS double circuit four routeway , double independent liquor drainage, doubel tool tank, double tyre bracket(one spare tyre).
|
|||||
