Xinxiang Weimeng Metallurgical Equipment Co., Ltd.
China Manufacturer with main products: Vibrating Screen, Vibrating Motor, Vibrating Feeder, Crusher |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | standard package |
Specifications

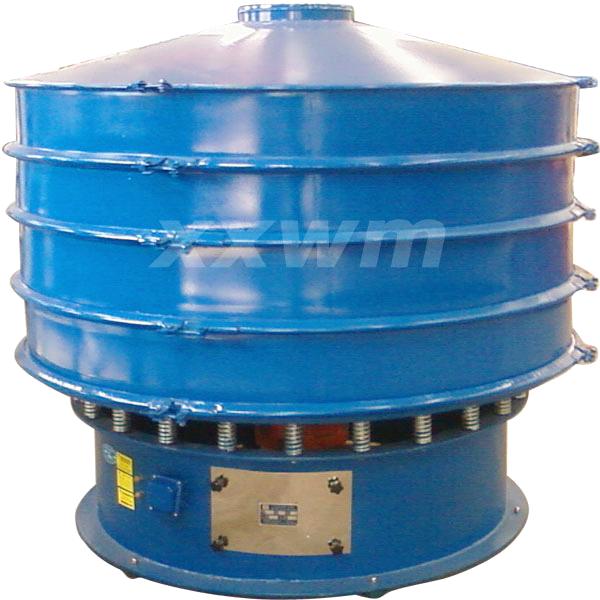

JZS Shaking Sieve
JZS series rotary shaking screen is a high-precision powder screening machine, which bases on many patent technologies.
Structure and Principle
JZS series rotary vibration sieve takes vertical motor as excitation source. The motor's top and bottom installs eccentric blocks, which change motor's rotary motion into horizontal,vertical,declining coordinate movement, and then pass the movement to screen surface. Material's trajectory on the screen surface can be changed by adjusting the phase angle of the motor's top and bottom.
Features and Advantages
- Any powder and mucilage can be screening, high efficient, skill and durable design.
- Easy to change screen net, simple operation, convenient cleaning.
- Mesh does not block. Powder is not flying. The material can be screened to 500 mesh or 0.028mm.
- Impurities and coarse material are exhausted automatically, and the machine can be operation continuously.
- Unique net rack design, long service life of screen net, rapid to change net just about 3 to 5min
- Small volume, easy to move, occupied little space
- Screen machines can reach five layers, we advise to use 3 layers
- Coordinate vibration and high precision screen filter can clear away non-soluble material from various thick liquid. JZS series of specially designed screening, filter's filter capacity reaches 100m3per hour. The machine applies to ceramics, pigment and other thick liquid filtration. One layer is often used to screen out impurities and weighting filter.
Applicable industries
- Industry: resin, coating, industrial chemical, cosmetics, paint, powder of traditional Chinese medicine and so on.
- Food industries: powdered sugar, starch, salt, rice flour, milk powder, soya-bean milk, egg powder, soy sauce, juice.
- Metal or metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, electric magnetic materials, lime, alumina, grinding dust, refractory material, heavy calcium carbonate, quartz sand and so on.
- Pollution treatment, waste oil, waste water, dyeing and finishing wastewater, auxiliary, activated carbon and so on.
Maintenance and operation:
1. before you use the machine, test whether the machine is normal operation, please.
2. If it has any abnormal phenomenon, maintenance in time.
3. After using, clean equipment.
Notes:
1. according to clients' needs, our company can design and manufacture vibrating sieve equipment of special type and specification.
2. Our company has reserve the right to adjust all technical information and size.
3. When ordering, please indicate the specifications, sieve surface layer,material name,mesh size and other parameters.
|
Model
|
nominal diameter
(mm) |
Screen surface diameter
(mm) |
Effective screen surface area
(m3) |
Max feeding area
(mm) |
Specifications of screen surface (mesh/hour)
|
layer
|
Vibration times
(Rpm) |
Power
(KW) |
|
JZS-400
|
400
|
340
|
0.09
|
<10
|
2-500
|
1-5
|
1500
|
0.18
|
|
JZS-600
|
600
|
540
|
0.22
|
<10
|
1500
|
0.25
|
||
|
JZS-800
|
800
|
730
|
0.4
|
<20
|
1500
|
0.55
|
||
|
JZS-1000
|
1000
|
900
|
0.63
|
<20
|
1500
|
0.75
|
||
|
JZS-1200
|
1200
|
1100
|
0.95
|
<20
|
1500
|
1.1
|
||
|
JZS-1500
|
1500
|
1400
|
1.5
|
<20
|
1500
|
2.2
|
||
|
JZS-1800
|
1800
|
1700
|
2.3
|
<30
|
1-3
|
1500
|
3
|
|
|
JZS-2000
|
2000
|
1886
|
2.86
|
<30
|
1500
|
4
|
