Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

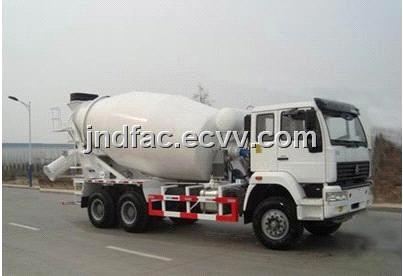

Sinotruck Howo 8cbm Concrete Mixer Carrier
| FOB Price: | 60,000.00 - 65,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | Ro-Ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | waxed |
Specifications
Howo 6*4 Concrete Mixer Carrier
1.Mixing Volume 8m3
2.ZFsteering gear,ZF steering pump
3.10 speed transmission Cement Concrete Mixer
4.336hp engin
A concrete mixer truck ia a truck specially built to transport and mix concrete to the building site , it is fitted with a cylindrical mixing drum ,which continuously rotates during transport to maintain materials liquid state.
Our concrete mixer truck motor , reducer , pump are adopted imported Italy or USA brand to ensure the mixer truck reliability .
1.Mixing Volume 8m3
2.ZFsteering gear,ZF steering pump
3.10 speed transmission Cement Concrete Mixer
4.336hp engin
A concrete mixer truck ia a truck specially built to transport and mix concrete to the building site , it is fitted with a cylindrical mixing drum ,which continuously rotates during transport to maintain materials liquid state.
Our concrete mixer truck motor , reducer , pump are adopted imported Italy or USA brand to ensure the mixer truck reliability .
Chassis feature:
1.10 Speed transmission
2.HF9 disc type front axle , axle load 9ton
3.HC16 Double reduction strenghened rear axle .
4.Chassis key parts are imported from Europe
(1):Germany Bethr water cooling and water tank , make engine more efficiency , lower fuel consumption
(2):Germany TMD disc brake
(3):Germany imported material φ430 plate clutch
(4):Germany ZF steering gear , ZF steering pump
(5):Germany VOSS auto joint
(6):WABCO automobile control system
(7):VDO instrument
|
Chassis model
|
ZZ5257GJBM3847C
|
Overall dimension(L*W*H)(mm)
|
9040*2496*3850
|
|
Gross weight
|
25000 (kg)
|
Approach angle/
Departure angle
|
16/24 (°)
|
|
Rated payload
|
11750(kg)
|
Front/rear suspension
|
1500/2365 (mm)
|
|
Kerb weight
|
13120 (kg)
|
Max speed
|
90 (km/h)
|
|
Engine
|
WD615.92E
|
||
|
Displacement
|
9726 (ml)
|
Power
|
196 (kw)
|
|
Emission standard
|
GB3847-2005,GB17691-2005 Euro 3
|
||
|
Axle No.
|
3
|
Front tread
|
2022 (mm)
|
|
Wheelbase
|
3825+1350 (mm)
|
Rear tread
|
1830/1830(mm)
|
|
Tyre No.
|
10
|
Tyre specification
|
12.00-20
|
|
Fuel type
|
Diesel
|
Leaf spring No.
|
9/12
|
|
Axle load
|
7000/18000(tandem rear axle)
|
Passenger No.
|
2
|
Our factory product line: Fire fighting truck , Aerial working platform truck , Road wrecker / tow truck / recovery truck , Truck mounted crane , road sweeper , Hooklift garbage truck , Skip loader waster truck , Refuse collection truck , Trash compactor truck , Refrigerator truck , Oil/fuel tank truck , water/sprinkler truck , Dump truck , Concrete mixer truck , Cement tank transport truck , Semi-trailer .
