Automatic Sorting Machine for cermaic tile polished tile

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Used Caterpillar 14G Wheel Grade / GOOD FAITH B...

Price:79,000.00-81,000.00 USD/Piece

Min. Order:1 Piece
aerial work platform--36m

Price:

Min. Order:
used komatsu PC60-8

Price:430,000.00-500,000.00 USD/Set

Min. Order:1 Set
Mixing Plant

Price:

Min. Order:1 Set
EPS CNC Cutting Machine

Price:27,000.00-30,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Specifications

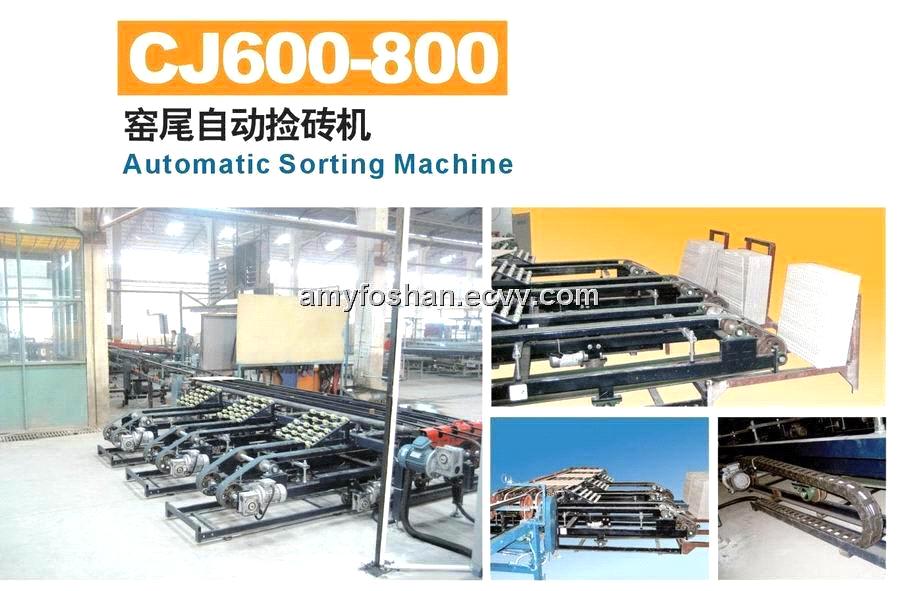

Automatic Sorting Machine

Summarize

Output: 11000㎡/day; suitable for size 600*600, 800*800, 1000*1000 mm tile, and it can be adjusted according to client’s requirements. In order to satisfy the required speed, adopt photo electricity and PLC for belt transmission.

Equipment Description

Guiding Devices

This device is to guide tile and put in order from the kiln.

Crank moved by motor controls roller movement to stop and move tiles.

Length of guiding bar: the same as kiln with.

Diameter of guiding bar: 60mm*4000mm, Installation power: 0.37kw.

Glaze Line Lifting System

This device raises the whole row of tiles and convey to the manual table when the latter working procedure needs to change tile shelves.

There are two chains for every spring belt, and crank moved by motor controls belt to up and down.

Chain transmission adopts photoelectric switch, PLC and stepless speed variator to control the speed of chain, and the speed can be adjust to meet the producing requirement.

Installation power: 6.5KW.

Moving System

This device sends the tiles from the end of kiln to the shelves and makes the tile trimness. There are 4pcs of Ctype rubber belt on every moving belt.

Equipment length: 3800mm, Equipment width: 550mm

We are a leading supplier of machinery in Foshan, China. We provide Quartz Slab Production Line and ceramic machines such as Ceramic Tile Cutting Machine, Polishing Machine, Automatic Sorting Machine, Squaring and Chamfering Machine, Mosaic Machine, Automatic Loading Machine, Drying Case, Wax Collector, etc.

Our machines are made with the latest technology, but the prices are much lower than the products alike. We believe that they can help you promote your business and save a lot of cost.

If you need further information, please feel free to contact us, we will be happy to assist!
