XCMG,Construction Machinery Co,Ltd.Buiding Machinery Co.
China Manufacturer with main products: Concrete Pump |
Related products from verified members
-
Price:2,000.00-69,000.00 USD/SetMin. Order:1 Set -
Price:14,000.00-16,000.00 USD/UnitMin. Order:1 Unit
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Specifications
Overall weight: 49750kg
EngineModel: D13
EngineOutput power: 324/1400~1800kw/(r/min)
Dimension (L×W×H): 14885×2500×3990mm
EngineModel: D13
EngineOutput power: 324/1400~1800kw/(r/min)
Dimension (L×W×H): 14885×2500×3990mm
|
Technical Parameters
|
Note: All specifications on the website are subject to technical modifications without prior notice.
|
Travel Operation
|
|||
|
Category
|
Items
|
Unit
|
Parameters
|
|
Chassis
|
Model
|
|
FM440
|
|
Make
|
|
VOLVO
|
|
|
Max.speed
|
km/h
|
90
|
|
|
Max.gradeability
|
|
25%
|
|
|
Min.turning diameter
|
m
|
27.4
|
|
|
Brake distance
|
m
|
≤10
|
|
|
Axle base
|
mm
|
1995+5205+1370+1450
|
|
|
Wheelbase (front/rear)
|
mm
|
2028/1872
|
|
|
Approach/departure angle
|
°
|
16.6/11
|
|
|
Min.ground clearance
|
mm
|
270
|
|
|
Tire
|
|
12.00R20
|
|
|
Engine
|
Model
|
|
D13
|
|
Output power
|
kw/(r/min)
|
324/1400~1800
|
|
|
Max.torque
|
N.m/(r/min)
|
2200/1050~1400
|
|
|
Displacement
|
l
|
12.8
|
|
|
Emission standard
|
|
China Ⅲ GBⅢ
|
|
|
Others
|
Dimension (L×W×H)
|
mm
|
14885×2500×3990
|
|
Overall weight
|
kg
|
49750
|
|
|
Fuel tank volume
|
l
|
450
|
|
|
Fuel consumption (100km)
|
l/100km
|
50
|
|
|
Working Condition
|
|||
|
Pumping system
|
Theoretical capacity(High/low pressure)
|
m3/h
|
100/163
|
|
Pumping pressure(High/low pressure)
|
Mpa
|
13/8
|
|
|
Theoretical frequency(High/low pressure)
|
Times/min
|
13/21
|
|
|
Max.aggregate diameter
|
mm
|
40
|
|
|
Loading height
|
mm
|
1530
|
|
|
Slump
|
cm
|
12-23
|
|
|
Placing boom
|
Reach height
|
m
|
55.7
|
|
Reach depth
|
m
|
44
|
|
|
Slewing radius
|
m
|
51.7
|
|
|
Slewing angle
|
°
|
364
|
|
|
Stretch angle of 1st boom
|
°
|
96
|
|
|
Stretch angle of 2nd boom
|
°
|
180
|
|
|
Stretch angle of 3rd boom
|
°
|
180
|
|
|
Stretch angle of 4th boom
|
°
|
180
|
|
|
Stretch angle of 5th boom
|
°
|
260
|
|
|
Outrigger span
|
Outrigger span
|
11250
|
|
|
Transverse span of front outrigger
|
11400
|
||
|
Transverse span of rear outrigger
|
11300
|
||
|
Others
|
Batching
|
|
S valve
|
|
Lubrication
|
|
Automatic lubrication
|
|
|
Control
|
|
Manual/remote control
|
|
|
Change of High/low pressure
|
|
Automatic
|
|
|
Water tank volume
|
|
700
|
|
|
Max.pressure of water pump
|
|
2
|
|
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.

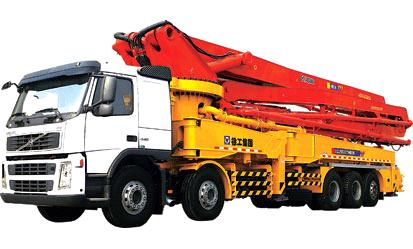

XCMG concrete pump truck from this supplier
