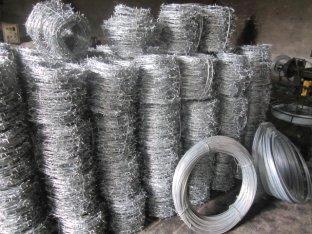

SWG 11 - 20 Double Twisted Galvanized Barbed wire

FOB Price:	850.00 - 1100.00 USD
Payment Terms:	L/C

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Beijing in China

Specifications

Galvanized Barbed wire

Galvanized Barbed Iron Wire in IOWA type has 2 strands and 4 points. Barbs' distance can be 3-6 inches with a tolerance at 1/2" less or more.

Galvanized Barbed Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

Patterns Available for Galvanized Barbed Wire: Single Twisted Barbed Wire, Double Twisted Barbed Wire, Traditional Twisted Barbed Wire

Features:

Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

Packing: In coils.

PVC Coated Barbed Wire:

We offer plastic coated barbed wire in different colors, mostly green coated.Technical Info of PVC Coated Barbed Iron Wire: Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire. Colors: A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us. Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm. Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

Barbed Wire Uses: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.

Specification List

Standard Specification of Barbed Wire

Gauge of Strand and Barb in B.W.G.	Approximate Length per Kilo in Meter
Gauge of Strand and Barb in B.W.G.	Barbs Spacing 3"	Barbs Spacing 4"	Barbs Spacing 5"	Barbs Spacing 6"
12x12	6.0617	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.814	9.2242	9.5620
13x13	7.9808	8.899	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386

Specification List of PVC Coated Barbed Wire:

Core Wire Diameter	Outside Diameter
1.0mm-3.5mm BWG.11-20 SWG. 11-20	1.4mm-4.0mm BWG. 8-17 SWG. 8-17
Note: Thickness of P.V.C. coating layer: 0.4mm-0.6mm
