Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

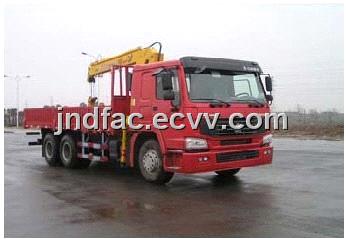

12 Ton Truck Mounted Crane
| FOB Price: | 60,000.00 - 70,000.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Year |
| Shipping: | Ro-Ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | waxed , as customer request |
Specifications
12 Ton Truck Mounted Crane
XCMG brand Knuckle Boom Truck Crane
Assembled from Sinotruck Howo Brand Second type chassis
XCMG brand Knuckle Boom Truck Crane
Assembled from Sinotruck Howo Brand Second type chassis
Drive Model:6*4
Sinotruck Engine
Horsepower 266
Wheelbase(mm): 5825+1350
Wheelbase(mm): 5825+1350
Articulating boom type :
Max Lifting Capacity: 12000kg
Max Lifting Moment: 30 T.M
Recommend Powe : 32 kw
Max Oil Flow of Hydraulic System: 55 L/Min
Rated Pressure of Hydraulic System: 30 Mpa
Oil Tank Capacity: 160 L
Rotation Angle: All Rotation
Crane Weight: 4130kg
Installation Space: 1400 mm
4 section of booms lifting capability diagram
| Working radius(m) | 2.5 | 4.2 | 5.898 |
6.02
|
7.9
|
9.78 |
|
Lifting capacity(kg)
|
12000
|
6900
|
4560
|
4850
|
3410
|
2650 |
Telescoping boom type :
Max Lifting Capacity: 12000kg
Max Lifting Moment: 30 T.M
Recommend Powe : 30 kw
Max Oil Flow of Hydraulic System: 63 L/Min
Rated Pressure of Hydraulic System: 26 Mpa
Oil Tank Capacity: 160 L
Rotation Angle: All Rotation
Crane Weight: 4200 kg
Installation Space: 1300 mm
4 section of booms lifting capability diagram
| Working radius(m) | 2.5 | 4.8 | 7 | 9 | 12.5 |
| Lifting capacity(kg) | 12000 | 6000 | 3500 | 2700 | 1800 |
For more information pls contact
Jessica Song
