Luoyang Jinerjian Trading Co., Ltd.
China Manufacturer with main products: Butterfly Valve, Wafer Butterfly Valve, Worm Butterfly Valve, Flang Type Butterfly Valve |

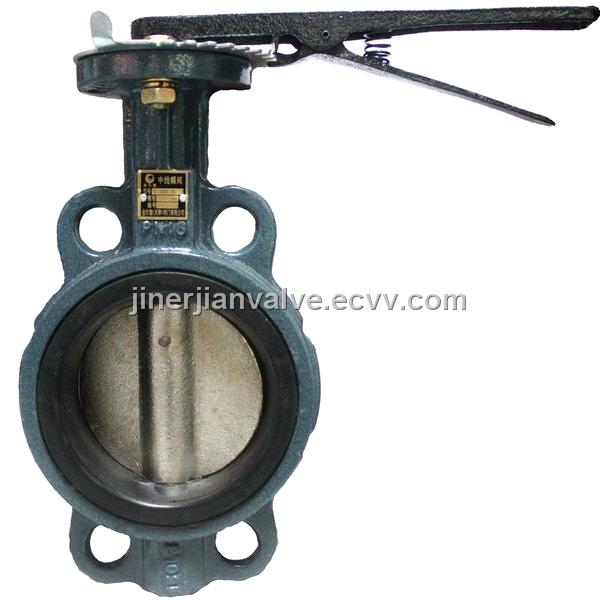

Manual operated wafer butterfly valve
| FOB Price: | 3.68 - 98.68 USD/Set |
|---|---|
| Supply Ability: | 32,000 Set/Sets per Month |
| Shipping: | 10-45days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | Wooden case |
Specifications
Main Parts of Butterfly Valve
Body + Buttferfly board + gluesheath + hand shank + axis + screw bolt+disk +pin+high-molecular cover + O type ring
|
|
DN100 4"market
|
DN100 4" Jinerjian butterfly valve
|
|
item
|
material
|
material and features
|
|
product
|
handle butterfly valve weight 3.14kg, worm one weight 5.44kg. Cold spray,only used indoor
|
handle butterfly valve weight 5.26kg, worm one weight 7.34kg Unique appearance, meets GB, ANSI, JIS standard, spraying under 2 times high temperature, never fade. 24 months guarantee
|
|
body
|
cast iron,weight 1.56kg,hollow, rudeness,can't ensure concentricity
|
cast iron,3.14kg, be processed under CNC lathe. Solid, drilled by machine,ensure the concentricity, reduce friction effectively. can supply ductile iron, cast steel, stainless steel 304, 316, 316L etc
|
|
seat
|
renovated rubber, includes 5% natural rubber, hard,low flexibility, easy leakage after several times
|
EPDM seat, includes 50% natural rubber, -20-120℃,long service life, test results show rubber has no influence after open and shut 6000 times. can supper NBR, PTFE, CSM, Viton, silicone rubber and CR
|
|
disc
|
weight 0.46kg, hollow,withstand 10bar pressure
|
0.56kg,solid,working pressure is 30 bar. can supply ductile iron, cast steel, stainless steel 304, 316, 316L etc
|
|
stem
|
0.28kg,length 275mm, diameter 12mm,black iron stem,easy to rust
|
0.44kg,290mm,diameter 16mm, made from galvanized cold drawn steel, smooth and anti-rust, reduce friction effectively
|
|
bushing
|
only use 1 rubber O-ring
|
yellow bushing,made from waterproof and wear resistant material after 16 processes,each valve has 4 bushings+1 O-ring, 5 steps reach zero leakage
|
|
bolt+nut
|
2 sets 6*20 galvanized bolts and nuts
|
10*30 2 sets color bolts with two pairs gaskets to prevent loosen when pipe shock
|
|
handle
|
length 230mm, weight 0.32kg
|
length 260mm,scientific design, labour saving ,weight 0.36kg can supply pressed chromium handle, aluminum handle etc
|
|
dick
|
1.2mm thickness
|
2mm thickness can supply pressed chromium plating disc and aluminum disc
|
|
gearbox
|
weight 1.7kg, cover with paint
|
weight 2.04kg, spraying frosting
|
|
test pressure
|
spot check,10 bar test pressure
|
every butterfly valve has to tested on both sides before delivery,test pressure can reach 20 bar, national standard only request 17.6 bar
|
