Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

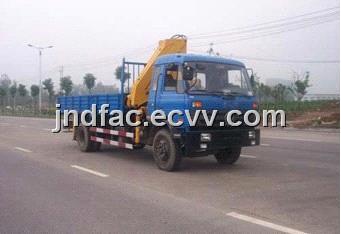

Derrick Cargo Truck Mounted Crane
| FOB Price: | 50,000.00 - 60,000.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Year |
| Shipping: | Ro-Ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | waxed , as customer request |
Specifications
Derrick Cargo Truck Mounted Crane
Assembled from DongFeng Brand Second type chassis
Assembled from DongFeng Brand Second type chassis
Drive Model: 4*2
Horsepower 190
Truck Mounted Crane
DongFeng Cummins Engine
Wheelbase: 5100mm
Truck Mounted Crane
DongFeng Cummins Engine
Wheelbase: 5100mm
When Articulating boom type :
Max Lifting Capacity: 8000kg
Max Lifting Moment: 16 T. M
Recommend Powe : 28 kw
Max Oil Flow of Hydraulic System: 40 L/Min
Rated Pressure of Hydraulic System: 28 Mpa
Oil Tank Capacity: 160 L
Rotation Angle: All Rotation
Crane Weight: 2970kg
Installation Space: 1150 mm
4 section of booms lifting capability diagram
| Working radius(m) | 2 | 4.175 | 5.995 |
7.785
|
9.755
|
|
Lifting capacity(kg)
|
8000
|
3700
|
2400
|
1700
|
1250
|
When Telescoping boom type :
Max Lifting Capacity: 8000kg
Max Lifting Moment: 20 T. M
Recommend Powe : 28 kw
Max Oil Flow of Hydraulic System: 55 L/Min
Rated Pressure of Hydraulic System: 27 Mpa
Oil Tank Capacity: 160 L
Rotation Angle: All Rotation
Crane Weight: 3300 kg
Installation Space: 1200 mm
4 section of booms lifting capability diagram
| Working radius(m) | 2.5 | 4.5 | 7 | 9 | 11.5 |
| Lifting capacity(kg) | 8000 | 4400 | 2500 | 1750 | 1100 |
For more information pls feel free to contact
Jessica Song
Jessica Song
