Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

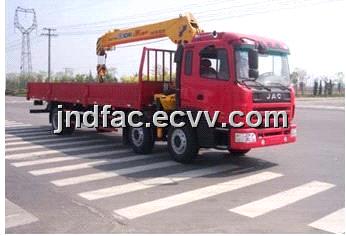

Cargo Crane Truck - 8 Ton
| FOB Price: | 70,000.00 - 75,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | Waxed , Ro-Ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Bulk shipment or Roro shipment skype:jessicasong0525 |
Specifications
Cargo Crane Truck - 8 ton
Our Hydraulic Truck Mobile crane has a wide range to choose , have knuckle boom crane and telescopic boom crane optional , crane lifting capacity: 2ton , 3.2ton , 4ton , 5ton , 6.3ton , 8ton , 10ton , 12ton , 14ton , 16ton
A 8ton crane can choose a 4x2 drive truck or a 8x4 drive truck mounted , we have Foton Auman , Shaanxi , Sinotruck , FAW , JAC , DongFeng truck optional.
Feature:
1. Assembled from Foton Brand Auman Second type chassis
2. Foton coorperated with Cummins engine ,Model ISDE210 30 ,Horsepower 210
3.Drive Model: 6*2, Wheelbase(mm): 1700+5300
4. Adopted "XCMG" Brand Crane,which CE approved
5.Articulating or Telescoping booms
6. Max lifting capacity: 8000kg at 2-2.5m
7. Overall dimensions( L*W*H)(mm): 10995 x 2500 x 3690/3590
8. Cargo body dimensions (L*W*H) (mm) : 7350 /7200 x 2316 x 550
|
Vehicle model
|
XZJ5250JSQB
|
|
Chassis brand
|
Foton Auman
|
|
Gross weight (kg)
|
25000
|
|
Curb weight (kg)
|
11560
|
|
Curb weight (kg)
|
13245
|
|
Vehicle dimension(mm)
|
10995×2500×3690
|
|
Wheelbase (mm)
|
2000+4800
|
|
Engine model
|
Phaser180Ti-30
|
|
Power
|
134kw
|
|
Displacement
|
5990ml
|
|
Tire type
|
10.00-20
|
|
Crane capacity
|
Max lifting 8,000kg at 2 meter
|
|
Boom type
|
3 section , Telescopic boom (Knuckle boom optional)
|
Crane feature:
When Articulating boom type :
Max Lifting Capacity: 8000kg
Max Lifting Moment: 16 T. M
Recommend Powe : 28 kw
Max Oil Flow of Hydraulic System: 40 L/Min
Rated Pressure of Hydraulic System: 28 Mpa
Oil Tank Capacity: 160 L
Rotation Angle: All Rotation
Crane Weight: 2970kg
Installation Space: 1150 mm
4 section of booms lifting capability diagram
| Working radius(m) | 2 | 4.175 | 5.995 |
7.785
|
9.755
|
|
Lifting capacity(kg)
|
8000
|
3700
|
2400
|
1700
|
1250
|
When Telescoping boom type :
Max Lifting Capacity: 8000kg
Max Lifting Moment: 20 T. M
Recommend Powe : 28 kw
Max Oil Flow of Hydraulic System: 55 L/Min
Rated Pressure of Hydraulic System: 27 Mpa
Oil Tank Capacity: 160 L
Rotation Angle: All Rotation
Crane Weight: 3300 kg
Installation Space: 1200 mm
4 section of booms lifting capability diagram
| Working radius(m) | 2.5 | 4.5 | 7 | 9 | 11.5 |
| Lifting capacity(kg) | 8000 | 4400 | 2500 | 1750 | 1100 |
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
