flexi conduit connector, metallic (VJC Series)

FOB Price:	4.18 - 25.00 USD/Piece
Supply Ability:	500 Meter per Day
Shipping:	15-20 working days after receipt of payment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tianjin in China
Packaging Details:	carton or wooden case

Quick Details

Brand Name: KT-FLEX
Model Number: VJC-M11
Type: Adapter
Application: Power
Gender: Male
Material: Iron
Protection rating: IP54
Thread Type: M20x1.5
Conduit Size: 15mm
male female: male
process: casting

Specifications

flexi conduit connector:
1.high quality
2.thread type: NPT,PF,G,Metric,BSP
3.long using life
4.free samples can be provid

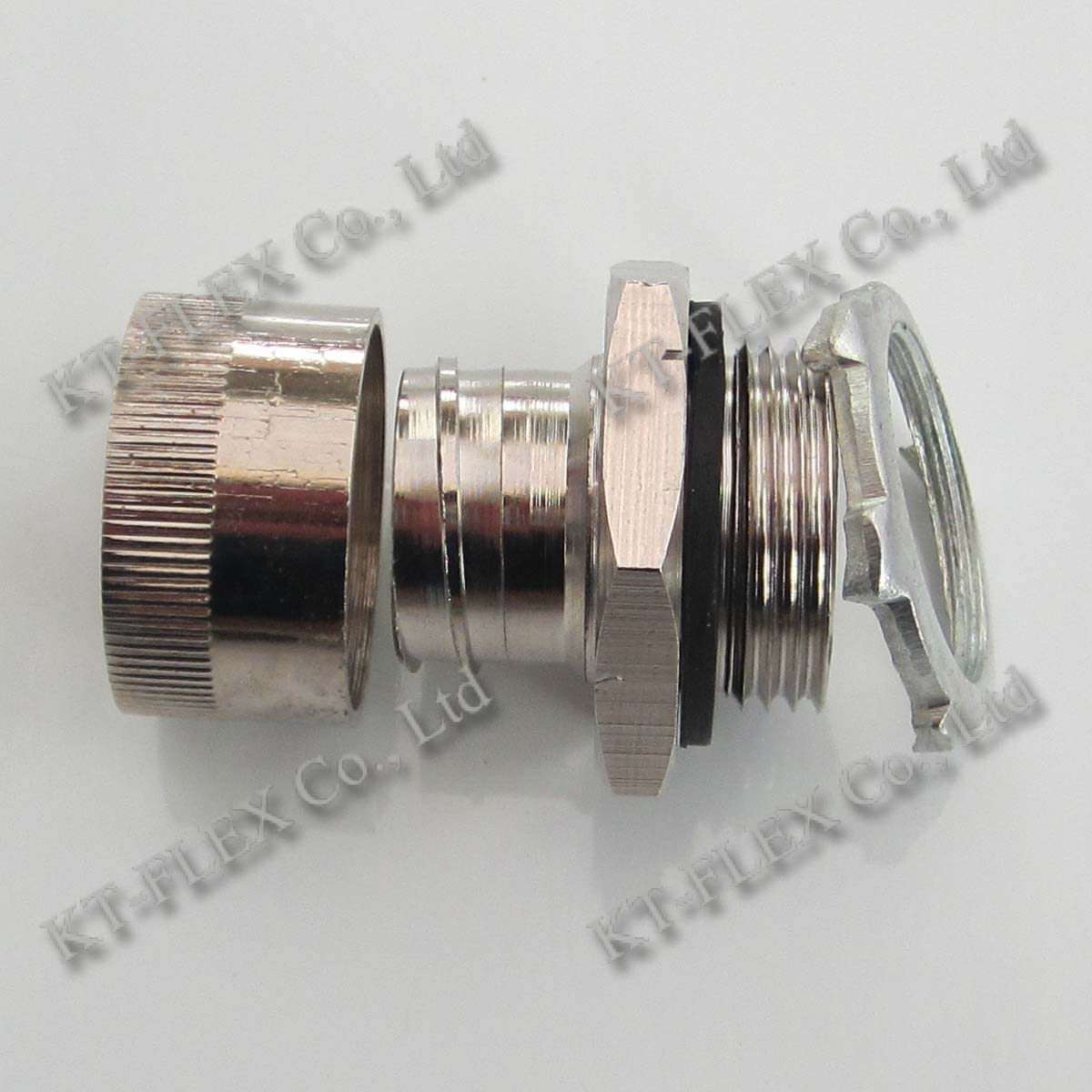

flexi conduit connector, metallic (VJC Series) :

· Material: Iron,Brass,Stainless steel

· Protection rating: IP54

· Furnished with insulating liner

Normal Size				Size		Conduit Size
Iron	Brass	SS	Thread Type	A (mm)	B (mm)	Inch	Latus Rectum(mm)
VJC-M09	VJCB-M09	VJCS-M09	M16x1.5	12.70	16.00	3/8"	Φ12
VJC-M10	VJCB-M10	VJCS-M10	M20x1.5	12.70	20.00	3/8"	Φ12
VJC-M11	VJCB-M11	VJCS-M11	M20x1.5	12.70	20.00	1/2"	Φ15
VJC-M12	VJCB-M12	VJCS-M12	M25x1.5	14.25	25.00	3/4"	Φ20
VJC-M13	VJCB-M13	VJCS-M13	M32x1.5	16.20	32.00	1"	Φ25
VJC-M14	VJCB-M14	VJCS-M14	M40x1.5	18.20	40.00	1-1/4"	Φ32
VJC-M15	VJCB-M15	VJCS-M15	M50x1.5	18.20	50.00	1-1/2"	Φ38
VJC-M16	VJCB-M16	VJCS-M16	M63x1.5	20.00	63.00	2"	Φ51

About us:

KT-FLEX Co., Ltd mainly deals in developing and manufacturing high quality liquid-tight flexible conduits and metal hose, conduit fittings, as it has been for over 10 years. As one of major OEM/OBM/ODM for flexible conduit and fittings. The reasons for this fact lie in our KT-Flex brand name and the quality it represents. The varieties KT-Flex's conduit and fittings have been used in electric power plant, industrial facilities, wire harnesses, machine , instrumentation, telecommunication equipment, and automobiles etc.
