Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

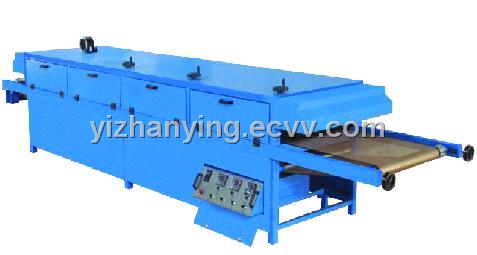

SCD Series Conveyor Dryer

DESCRIPTION

SCD series infrared-red dryer is designed for the critical final step for screen printing system. SCD series wider belt widths and longer belt length let you accomplish a large production output, speeding up the steps to win the market. Modular infrared heat elements instead of gas & liquid heat sources is aimed to improve curing setup and provide more higher thermal power. Three built-in turbo fans operate independently as heat flow ciculation, cool-down, exhaust. Plus high precision temperature controller system combining the multiple thermocouples ensure fast reach up to the stable operator-set temperature. In addition, HG features adjustable heating elements height knobs, teflon coated fiberglass belts, heavy-duty anodized steel rollers, asbestos filled-in insulation construction and 3-phase AC belt tracking motor. The visible temperature digital display panel and automatic shut-down system when beyond the pre-set temperature led the HG to be the most affordable and efficient dryer over the current curing territory.

STANDARD FEATURES

1, Extremely high powered multiple infrared curing elements

2, Three turbo fans provide for heat air flows circulation, cooling, harmful exhaust respectively

3, The curing chamber is devided into three zones that can be controlled independently

4, Visiable temperature LED display delievers high precision temperature control

5, Automatic shutdown system backed with multiple thermoldoubles saves more electric energy

6, Filled-in asbestos heat resistent structure eliminates accidental contact and prevents heat migration.

7, Teflon coated fiberglass belt can be extended to 2000mm width wider.

8, Adjustablt infrared curing panel height

9, Anodized tougn steel rollers for positive belt tracking

10, Innovative drawer-shaped control panel can be hided if not used

11, Infeed/outfeed extensions are available according to customer requirements

SPECIFICATION

Model	SCD
Speed	8m/min (Adjustable)
Belt Width	800-1200/mm(Optional)
Max. Temperature	200℃
Tunnel Length	4000-12000/mm(Optional)
Size	5560×1320×1300/mm
Voltage/Frequency	3Ph 380V/50Hz
Heat Power	20-60Kw
