Xingtai Brand Hydraulic Steel Wire Rope Press Machine

Supply Ability:	20 Set(s) per Month
Shipping:	20 days after confirm payment
Payment Terms:	L/C, D/A, D/P, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

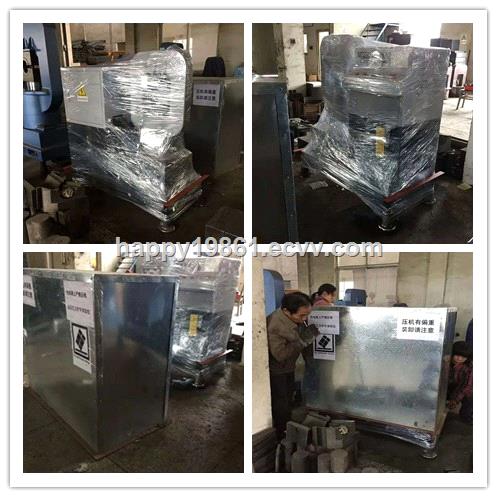

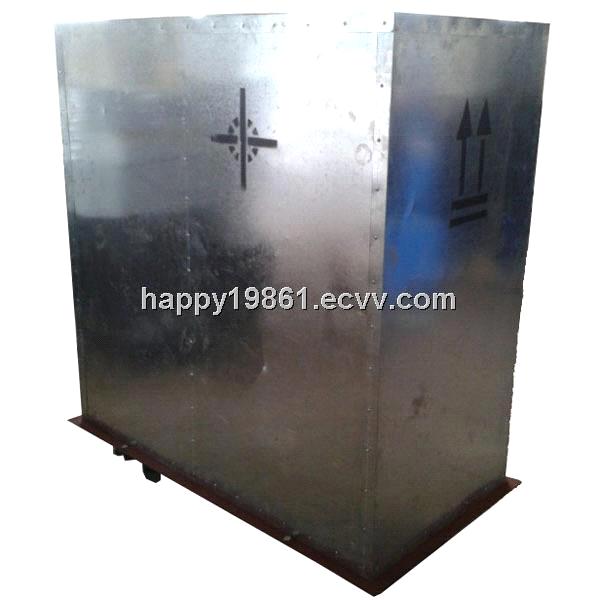

Packaging Details:	shrinkwrap and iron box

Quick Details

After-sales Service Provided: No overseas service provided
Brand Name: Xingtai
Power Source: Hydraulic
CNC or Not: CNC
Condition: New
Certification: CE
Dimension(L*W*H): 1100X550X1200mm
Power(W): 3KW

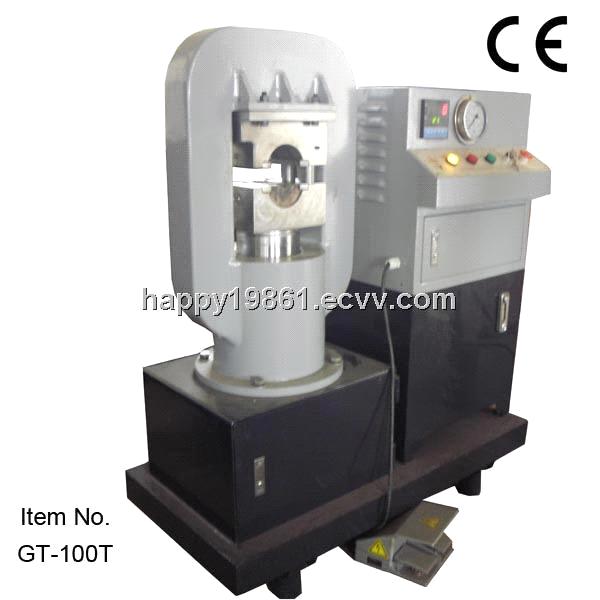

Model Number: GT-100T
Press range: 1-15mm
Work pressure: 28Mpa

Specifications

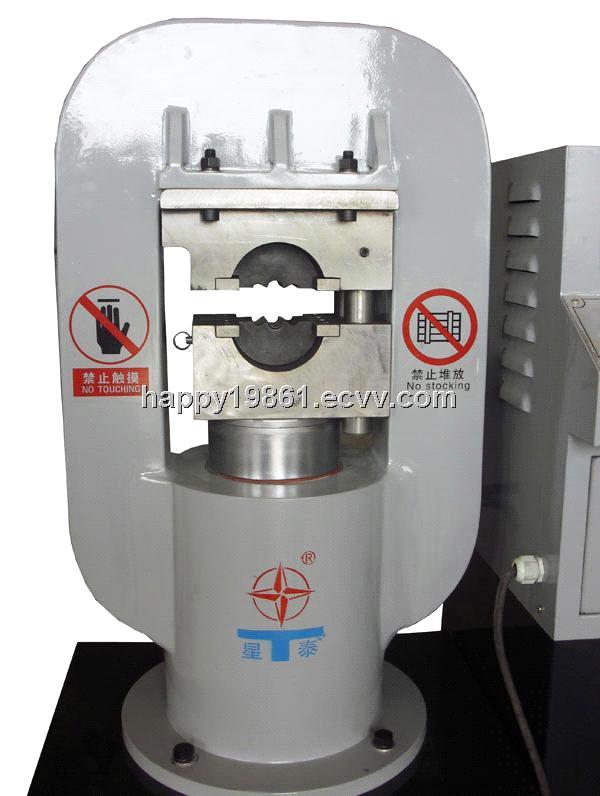

XIngtai wire rope press machinEs are used to make pressed wire rope sling. the body of swagers are manufactured from one single block construction that ensure strength, long service life and a minimum of maintenance. All swagers are thoroughly test run and are supplied with a full tank of oil.

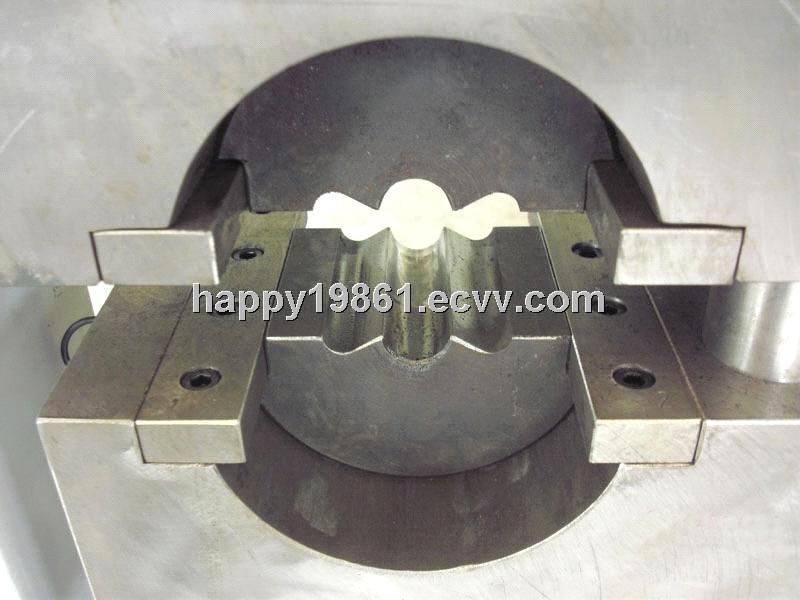

1. It uses a mechanical and electrical design, to switch to a different mold, you can suppress the different specifications of wire rope, easy to operate and safe.

2. Dual control for hydraulic system, the overflow valve, magnetic contact on the pressure gauge can be accurately controlled.

3. Electric control parts of the low-voltage control, an increase of operating system security.

4. Pull the rope to suppress large, beautiful, fast, and a wire rope press-fit just a few minutes to complete, significantly reduced the labor intensity and improve the work efficiency.

5. XIngtai wire rope press machine have exported to many countries, UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana

and so on.

Mode No.	GT-100T	GT-200T	GT-300T	GT-350T	GT-500T	GT-650T	GT-1000T
Max press power (KN)	1000	2000	3000	3000	5000	6500	10000
Max wire rope diameter in one pressing (mm)	Φ13	Φ20	Φ24	Φ26	Φ32	Φ38	Φ44
Max wire rope diameter in multi-pressing (mm)	Φ15	Φ22	Φ32	Φ34	Φ42	Φ48	Φ56
Power (KW)	3	4	4	4	7.5	7.5	11
Max working pressure (Mpa)	28Mpa	28Mpa	58Mpa	58Mpa	56Mpa	56Mpa	58Mpa
Max piston movement (mm)	78	80	80	80	120	160	160
the up speed of piston (Mm/sec)	8	8	4.5	4.5	4.5	4.5	4.8
the down speed of piston (Mm/sec)	10	10	4.5	4.5	8	8	10
Total length (mm)	1100	1100	1200	1200	1550	1550	2000
Total width (mm)	550	550	650	650	650	650	800
Total height (mm)	1300	1300	1400	1400	1600	1600	1800
Net weight (kg)	600	900	1000	1000	2500	3000	4500
