Botou Kexinda Roll Forming Machinery Co., Ltd.
China Manufacturer with main products: Roof Roll Forming, Wall Roll Forming Machine, c Purlin Roll Forming Machine, z Purlin Roll Forming Machine |

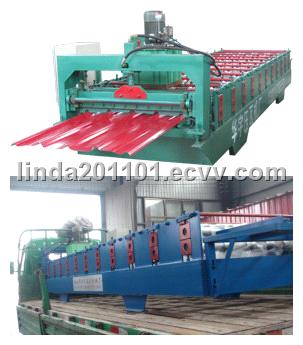

roof panel roll forming machine
| FOB Price: | 7,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | any |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | container |
Specifications
roof roll forming machine
as your requirement.
provide you machine with best quality and price.
1.Main counting parameters:
Appearance size: 6200mm*1350mm*1510mm
Width range: 1000mm
Thickness range: 0.3-0.8mm
Inner diameter range:500mm
Speed of product: 8-10m/min
2.Process and components
Process: Man-made uncoiler--Roll forming machine --PLCsystem--Hydraulic system--moldpressing machine--Blade
3.
Components of line:
|
NO
|
Name
|
Unit
|
Qty
|
|
1
|
Manual decoiler
|
set
|
1
|
|
2
|
Main machine for roll forming
|
set
|
1
|
|
3
|
PLC Control system
|
set
|
1
|
|
4
|
Hydraulic system
|
set
|
1
|
|
5
|
Post cut
|
set
|
1
|
|
6
|
Stacking
|
set
|
1
|
4.Function and structure :
Man-made uncoiler
Application and technical parameter:
Inner diameter : 500mm
Outer diameter:1100mm
Width:1000mm
Loading weight:≤5t
5.Main machine for roll forming
Application and techinical parameter
Pass:13 Passes
Shaft diameter : 72mm
Roller material:45 steel(Cr coating)
Total power: 3+3KW
Control system:
Function and operation:Control the starting,operation and stopping of the complete line,including distribution section,operation table,counting instruction.Use PLC to control,set and adjust the length.Both man-made and auto operation: on the man-made condition,eachequipment can operated by switch;on the auto condition,only circulation stop and rapid stop switch.
7.Hydraulic system:
Function: apply power for cutting machine.
8. Blade
Function and structure:cutting the forming sheet
Application and technical parameter: Blade meterial:Cr12 and Harding treatment
Max thickness:0.3-0.6mm
