Plastic Disposable Cup/Bowl Forming Machine SafeBuy Supplier Member

Supply Ability: 8 Set/Sets per Month
Shipping: 35-45days.Based on FOB Ningbo or Shanghai Port of China.
Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Oil,firm and Wooden Case.(Standard Exporting Packing Machine)

Specifications

1.Plastic Disposable Cup/Bowl Forming Machine Application Area:

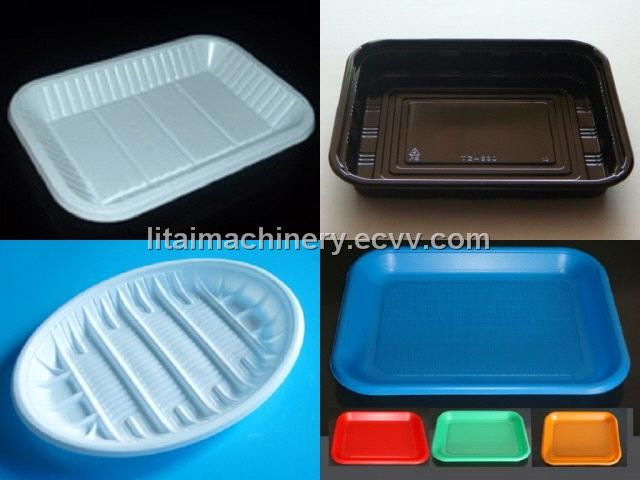

    It can use plastic Sheet to make different products,like plastic cups,bowls,dishes,lids
plates,square containers ect...


2.Suitable Material:

    PP/PET/PS/HIPS/PVC  Sheet ect.

3.Forming Area:

    650*320mm

4.Main Functions:

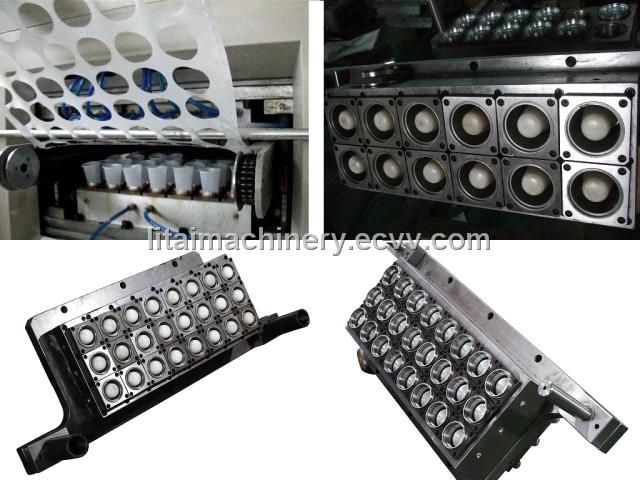

a.Four pillars to fix the mould.

   b.Automatic load for sheet roll.

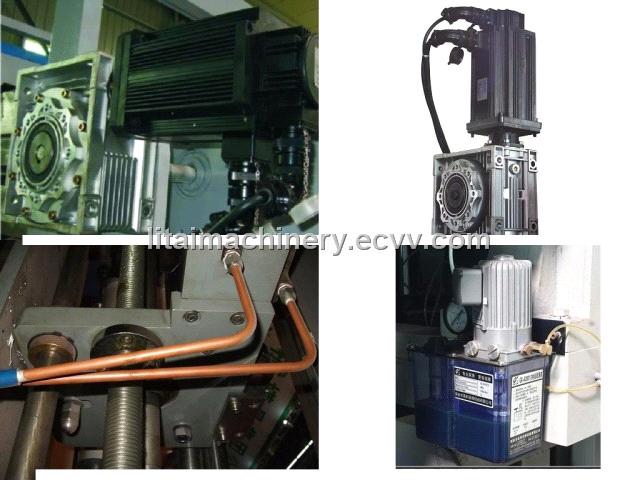

   C.Servo motors for feeding sheet and plug.

   d.It can automatic feeding,heating,forming,cutting.

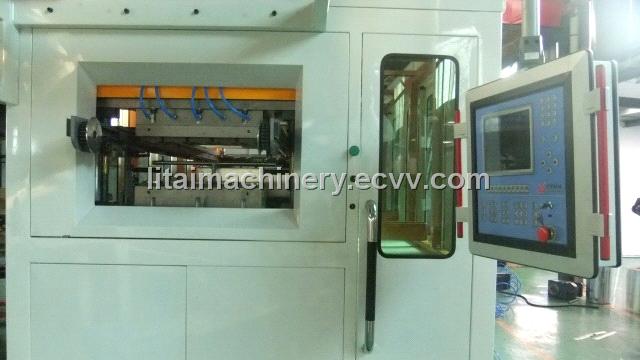

   e.PLC and Touch Screen Control

  f.Hydraulic system for drive.


5.Main Technical Parameter:


Forming Depth(Max)
125mm
Suitable Material:
PP, PS, HIPS, PET, PVC
Sheet thickness:
0.4mm-1.8mm
Sheet width(max):
650mm
Roll sheet Diameter(max):
600mm
Forming Speed:
25-35 recycles/min
Adjustable Travel:
100mm-350mm
Power
AC380, 50Hz, three phase
Over System:
Upper + Bottom oven
Upper oven:
80pcs of IR ceramic heaters
Bottom oven:
70pcs of IR ceramic heaters
Feeding Servo Motor:
3kw
Streching Servo Motor:
3kw
Oil Pump Motor:
15kw
Rewind Motor:
0.5kw
Rated Power:
80kw
Actual Power:
55kw
Compressed Air:
About 0.7-0.75mpa/1.6M3
Water Recycle:
About 0.5M3/H
Overall Dimension(mm):
About L6000×W2000×H2700
Weight:
About 4.6T

Forming Plastic Cup Machine,TQC-650A Automatic Cup Making Machine.
