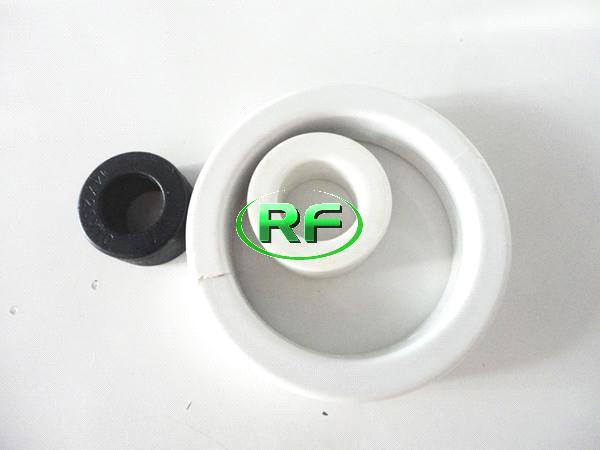

Soft Magnetic Core Nanocrystalline core current transformer core

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Nanocrystalline core for large power switch power supply main transformer, with an excellent comprehensive magnetic performance.

Application Fields:

1) Inverter welding machines

2) X-ray and laser source power supplies

3) UPS and high frequency heating supplies

4) Charging power supply

5) Electrolytic and plating power supply

6) Frequency conversion power supply

Fe-based nanocrystalline alloy is a kind of material with excellent comprehensive magnetic performances. And it integrates the advantages of silicon steel, permalloy and ferrite, such as high magnetic induction, high permeability, low core loss and superior temperature stability which enable it become the best choice for inverter power supply transformer core.

Performance Characteristics:

Made of Fe-based nanocrystalline ribbons, with high saturation magnetic induction, high permeability, high curie temperature and low core loss.

The saturation magnetic induction of the nanocrystalline core is 3 times that of the ferrite, and the output power is 2 times that of the ferrite of the same volume, as well as a higher resistance for overload. The core loss between frequency range of 20kHz~50kHz is 1/2-1/5 that of the ferrite. The permeability is 10 times that of the ferrite, thus its excitation magnetic power is lower and core loss is lower. The curie temperature of Fe-based nanocrystalline alloys is 570oC, which is 3 times that of the ferrite.
