three row cylindrical roller combined slewing bearing turntable slewing drive

FOB Price:	2.50 - 6.00 USD/Set
Supply Ability:	150 Set/Sets per Month
Shipping:	45 days
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

THB three row cylindrical roller slewing ring b...

Price:10,000.00-75,000.00 USD/Piece

Min. Order:1 Piece
Slewing Bearing for Drilling Platform

Price:

Min. Order:
Slewing Bearing

Price:1000.00-70000.00 USD/Set

Min. Order:5 Sets
011.50.2000 Kadano Kato Tower Crane Slewing Rin...

Price:1200.00 USD/Set

Min. Order:1 Set
SDD14 Dual Axis High Precise Slew Worm Drive Sl...

Price:1.00-100.00 USD/Set

Min. Order:1 Set
Kobelco SK120 Slewing Bearing Swing Bearing SK1...

Price:200.00-2,000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	1.bearing surface is covered with th anti-rust oil first;and then wrapped with the plastic film; 2.w

Specifications

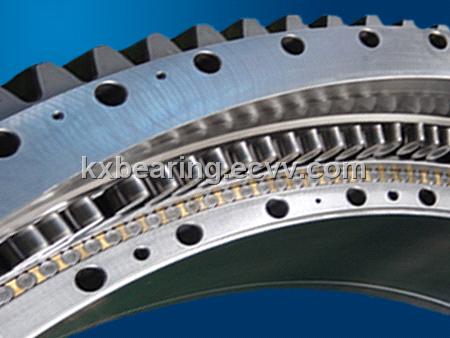

Three-row cylindrical roller combined slewing bearing
Three-row roller slewing ring has three seats.Up, down and radial raceways are separate, so each row roller load can be determined exactly. Be able to withstand the various load and its carrying capacity is the largest of four products. The axial, radial dimensions are large, solid structure, especially for applications that require large diameter heavy-duty machinery, such as bucket wheel excavators, wheel Cranes, marine cranes, port cranes, steel work stations and large-tonnage cranes and other machinery.

Slewing Bearing / Slewing Ring Bearing

Slewing bearing is a kind of special structure of large bearings which can withstand large axial load, radial load and overturning moment, integrating supporting, rotation, transmission, fixed and other functions. Under normal circumstances, slewing bearings have their own mounting holes, lubricants and seals, which can meet various of host need under different working conditions; On the other hand, slewing bearings themselves are compact, easy to guide the rotation,easy installation and easy maintenance, so they widely used in material handling equipments, mining machines, construction machinery, port machinery, wind power generation, medical equipments, radar and missile launchers and other large rotating devices.

According to different structure, slewing bearing can be divided into the following types:
1, the four-point contact ball slewing bearing
2, double row different diameter ball slewing bearing
3, crossed cylindrical roller slewing bearings
4, three-row cylindrical roller combined slewing bearing

Slewing bearing applications

Slewing bearing are widely used in lifting machinery, mining machinery, construction machinery, port machinery, shipbuilding, machinery, precision machinery radar and missile launchers and other large rotating device.

1. Wind generator

Tower and yaw bearings are installed in the junction of tower and the cockpit; pitch bearings are installed in each blade root and hub joints. Each wind turbine equipment use three sets pitch bearings and a set of yaw bearing. pitch bearing ring material select 42CrMo, treatment with the overall quenching, raceway select surface-hardening. As the wind turbine yaw, pitch bearing’s force is complex and bearings withstand large shock and vibration, therefore, required bearings to withstand both the impact and greater loads. Host wind turbine life requirements of 20 years, bearing the cost of installing large, thus requiring yaw, pitch bearing life have reached 20 years. Bearing rings matrix hardness is 240HB-280HB, so it is able to withstand shocks but no plastic deformation, meanwhile raceway surface quenching hardness reach to 55HRC-62HRC, also can increase the contact fatigue life, thus ensuring long life bearing requirements.

2. Marine Crane

In general, marine crane use double-row different diameter ball, four-point contact ball, three-row roller inner gear structure slewing bearings. According to the different carrying capacity, three-row roller slewing bearings are usually used for heavy-duty cranes, four-point contact ball slewing bearing and double row different diameter ball for light crane.

As cranes working environment is -20 ° C-+45 ° C, this kind of bearing require high material mechanical properties.

3. Offshore crane

According to different requirement for carrying capacity, offshore crane usually use four-point contact ball slewing bearing and three-row roller inner gear slewing bearing.

Slewing bearing used for offshore platform crane have special material requirements: material mechanical properties should be able to guarantee the limit load factor of safety., forging sample Charpy impact test can achieve to average 42J @ -20 ° C or 27J @ -40 ° C, bearing products to the Classification Society certification.

4. Port mobile crane

Port cranes usually use internal or external gear, 4 meters in diameter three rows roller slewing bearings to withstand high overturning moment.

5. stacker-reclaimer

Slewing bearing stacker-reclaimer usually use is ball column combined type, three-row roller and cross-roller, the majority diameter over 3 meters. Due to poor working conditions, dusty, these bearings have high load capacity, long life and good sealing performance feature.

6. Ferris wheel

Usually use four-point contact ball slewing bearing, diameter 4100mm, thickness 85mm.

7. Ship unloaders

Usually use three rows of outer roller tooth structure, about 4 meters in diameter

8. Tower crane

Usually use small size four-point contact ball bearings or double-row ball, diameter not more than 2 meters

9. Radar antenna

Usually use three-row roller slewing bearing, slow rotation

10. Shield

Diameter from 2.5 meters to 6 meters, some larger diameter, these bearings work in very poor conditions, bearing a large load, corrosion resistance, short life.

11. Ladle turret in steel plant

Usually these bearing are three-row roller slewing bearings, because work in the dust and high temperature conditions, so s have high demands for maintain, grease and seal.

12. Engineering machinery

Usually use small size four-point contact ball bearings or double-row ball, diameter not more than 2 meters
