SRT025 through hole slip ring
| Supply Ability: | 10,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 45 |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Specifications

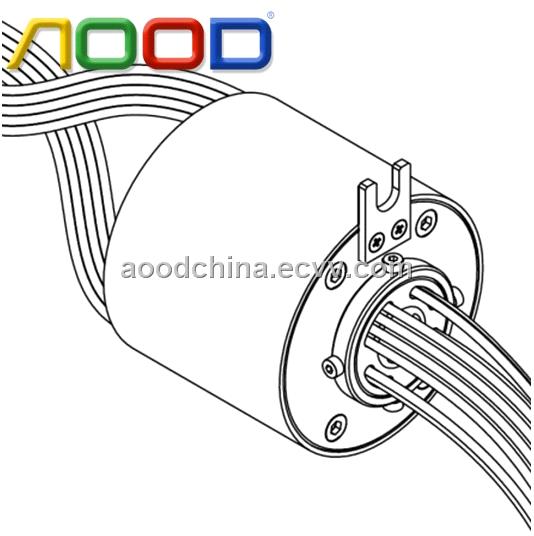

SRT025 through hole slip ring designed through bore is especially for power, hydraulic or pneumatic rotating shaft installation. The inner diameter of SRT025 is 25.4mm, adopting advanced fiber brush technique to realize multi-point contact and ensure extremely reliable contact at low friction, provide a longer service lifetime and free operation without maintenance or lubricant. In addition, this series in transmission of various signal also has excellent performance, including power, low voltage, high frequency, EMF, thermocouple, computer signal, Strain gauge, Inter Bus, Can-Bus, Profibus, RS422, RS485, PLC, analog / digital video, digital audio, Gigabit Ethernet, a weight sensor signal and other low control signals. It is a very ideal scheme to satisfy different applications from different customers.
SRT Through Hole Slip Rings Characteristics:
- Especially designed for power, hydraulic or pneumatic rotating shaft mounting in the center
- Lifetime of slip ring is dependent upon working speed, continuous working time and working environment
- Adopting advanced fiber brush technique, realizing multi-point contact, contact reliable
- Longer service lifetime and free operation without maintenance or lubricant
- Through hole from 12.7mm, 25.4mm, 38.1mm, 50.0mm, 70.96mm till to 500mm is optional
- Protection Grade could be high upon to IP66
- Support for different rotary system, transmission of video, control, sensing, power, Ethernet and other low control signals
- Metal of anti-corrosion appearance treatment for housing and rotating axis is option
Please contact us if any demands, our sales engineers will provide you recommendation or customization.
SRT Through Hole Slip Rings Application:
- Manufacturing and process control equipment
- Rotating exhibition equipment
- Hoisting equipment
- Robotics, Manipulator
- Packaging machine, Wrapper machine
- Medical equipment
- Radar communication equipment
- Military aviation equipment
- Automatic door, Revolving door
- Amusement rides
- welding machine
|
SRT025 Specification
|
|
|
Through Bore
|
25.4mm
|
|
Circuits
|
1-24 circuits
|
|
Operation Speed
|
0~300rpm
|
|
Working Temperature
|
-20℃ ~ +80℃
|
|
Working Humidity
|
60%RH or higher
|
|
Voltage Rating
|
380VAC/DC
|
|
Current Rating
|
2A,5A,10A,15A per circuits or Hybrid
|
|
Dielectric Strength
|
Between each circuit ≥500V@50Hz
|
|
Insulation Resistance
|
100MΩ@ 500VDC
|
|
Electric Noise
|
1MΩ
|
|
Contact Material
|
Noble
|
|
Lead Wire Size
|
UL Teflon®
|
|
Lead Wire Length
|
Standard 300mm (11.811 inch)
|
|
Housing Material
|
Aluminum alloy
|
|
Protection
|
IP54 or higher
|
|
Others:
|
|
|
Please contact us if any special application, our sales engineers will provide you recommendation or customization.
|
|
| Lead wire color codes | ||
|
Rings
|
Silver plated copper Teflon ®UL
|
|
|
AWG14
(15A)
|
AWG22/AWG 17
(2A/5A)/(10A)
|
|
|
#1
|
BLK
|
BLK
|
|
#2
|
BRN
|
BRN
|
|
#3
|
RED
|
RED
|
|
#4
|
ORG
|
ORG
|
|
#5
|
YEL
|
YEL
|
|
#6
|
GRN
|
GRN
|
|
#7
|
BLU
|
BLU
|
|
#8
|
WIT
|
PUR
|
|
#9
|
GRAY
|
GRAY
|
|
#10
|
CLAR
|
WIT
|
|
#11
|
WIT/RED
|
PINK
|
|
#12
|
WIT/BLU
|
AZURY
|
|
#13
|
BLK
|
WIT/BLK
|
|
#14
|
BRN
|
WIT/BRN
|
|
#15
|
RED
|
WIT/RED
|
|
#16
|
ORG
|
WIT/ORG
|
|
#17
|
YEL
|
WIT/YEL
|
|
#18
|
GRN
|
WIT/GRN
|
|
#19
|
BLU
|
WIT/BLU
|
|
#20
|
WIT
|
WIT/PUR
|
|
#21
|
GRAY
|
WIT/GRAY
|
|
#22
|
CLAR
|
CLAR
|
|
#23
|
WIT/RED
|
BLK/RED
|
|
#24
|
WIT/BLU
|
BLK/BRN
|
|
Wire color from the rotor side line, 12/24 different kinds of color for one circle.
|
||
|
L-Capsule Length
|
||||
|
circuits
Length(mm)
|
6 circuits
|
12 circuits
|
18 circuits
|
24 circuits
|
|
L(5A)
|
43.5mm
|
62.7mm
|
81.9mm
|
101.0mm
|
|
L(10A)
|
47.7mm
|
71.0mm
|
94.5mm
|
117.9mm
|
|
L(15A)
|
52.5mm
|
80.7mm
|
108.9mm
|
137mm
|
Please note that lifetime of slip ring is dependent upon working speed, continuous working time and working environment.
