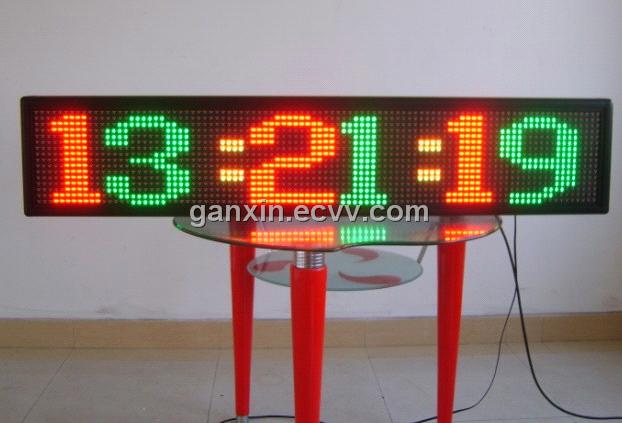

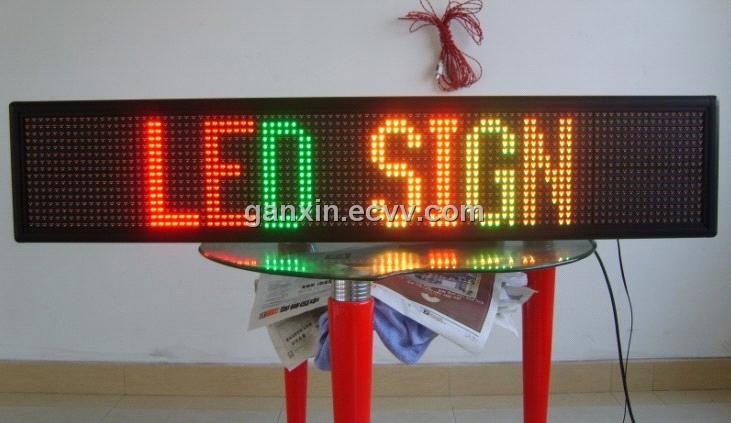

semi-outdoor p16 double color message time led sign
| Shipping: | 15days |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden box or carton |
Specifications
|
Product No.
|
P10
|
P12
|
P16
|
P20
|
P25
|
||
|
Physical pixel pitch
|
10mm
|
12mm
|
16mm
|
20mm
|
25mm
|
||
|
Virtual pixel pitch
|
5mm
|
6mm
|
8mm
|
10mm
|
12.5mm
|
||
|
Physical pixels per sqm
|
10000
|
6944
|
3906
|
2500
|
1600
|
||
|
Virtual pixels per sqm
|
10000*4
|
6944*4
|
3906*4
|
2500*4
|
1600*4
|
||
|
Pixel constitution
|
1R1G1B
|
2R1G1B
|
2R1G1B
|
2R1G1B
|
2R1G1B
|
||
|
Cabinet size
|
640 * 480mm
|
768 * 576mm
|
1024 * 768mm
|
1280 * 960mm
|
1000 * 800mm
|
||
|
Cabinet weight
|
25kg
|
35kg
|
55kg
|
70kg
|
50kg
|
||
|
Cabinet resolution
|
64 * 48pixels
|
64 * 48pixels
|
64 * 48pixels
|
64 * 48pixels
|
40 * 32pixels
|
||
|
Best viewing distance
|
10-150m
|
12-200
|
16-250
|
20-300
|
25-320
|
||
|
Max. Power consumption
|
900W
|
650W
|
900W
|
670W
|
430W
|
||
|
Ave. Power consumption
|
225W
|
160W
|
225W
|
160W
|
110W
|
||
|
Brightness
|
≥ 6000CD/m2
|
≥ 6000CD/m2
|
≥ 6800CD/m2
|
≥ 6500CD/m2
|
≥ 5500CD/m2
|
||
|
Driving method
|
1/2scan constant current driving
|
Static constant current
|
|||||
|
Best viewing angle
|
Horizontal: ≥ 140° ; Vertical: ≥ 120°
|
||||||
|
Frame frequency
|
≥ 60Hz/s
|
||||||
|
Refresh rate
|
adjustable from 10Hz to 3000Hz
|
||||||
|
color
|
281 trillions
|
||||||
|
Input voltage
|
AC 110 or AC220 V ± 10% , 50 to 60Hz
|
||||||
|
MTBF
|
10,000 hours
|
||||||
|
Life-span
|
100,000 hours
|
||||||
|
Ingress protection
|
Front IP65
|
||||||
|
Working environment
|
Temperature: -20° c-60° c; Humidity: 10%-90%RH
|
||||||
Through RS232, RS485, USB, TCP/IP, Wireless communication the screen can display text, display images, animation, temperature, etc
1. High brightness and definition, energy-saving, environment friendly.
2. No emissions, radiations, noise or chemical effluent.
3. Full complete technical support and long time after-sales service.
4. The most attractive and multi-use presentation format.
5. Easy operation and control, simple installation and maintainence
communication:
RS232 RS485, USB, TCP/IP, Wireless communication
brightness: high brightness and can adjusted
package: wooden box or carton
Warranty: one year
Delievery Time:
one week for indoor displays, two or three weeks for outdoors
Parameter
GS16-96P16RG
Screen size(L*H*D):1606*326*90mm
Screen net weight:19Kg
Power consumption:108W
Package size(L*H*D):(L*H*D):1686*406*210mm
Wooden box weight:12Kg
Screen gross weight:31Kg
Screen volume:0.14374836M3
Screen size(L*H*D):1606*326*90mm
Screen net weight:19Kg
Power consumption:108W
Package size(L*H*D):(L*H*D):1686*406*210mm
Wooden box weight:12Kg
Screen gross weight:31Kg
Screen volume:0.14374836M3
Delivery time
Indoor screen : 1 week
Outdoor screen 2-3weeks
