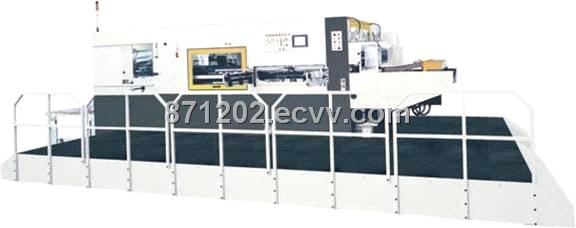

Sell Automatic Diecutting & Creasing Machine

Inquiry Now

Related products from verified members

Auto Liquid Filling Machine for Liquid Soap (ME...

Price:1,000.00-10,000.00 USD/Set

Min. Order:1 Set
Automatic Type Fire Extinguisher Powder Filler ...

Price:4,300.00-4,600.00 USD/Set

Min. Order:1 Set
CT-189 Stainless steel tea bag packing machine ...

Price:6,000.00-8,000.00 USD/Set

Min. Order:1 Set
Semi-automatic Dry Powder Filling Machines

Price:400.00-700.00 USD/Set

Min. Order:1 Set
G1WYD Double hopper liquid volumetric filling m...

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

The configurations of the machine

FEEDER (Maxcut lead edge feeder)

* New up graded, same as Maxcut lead edge feeder, more accurate and positive feeding

* Rare jogger at feeder to prepare for the possible future in line operation with prefeeder (optional).

* Pneumatic side push guide plates (left and right sides)

* Left and right side guides, individually position adjustable and register side at choice per box layout.

* High vacuum blower with silencer and valving system

DIECUTTING SECTION

* Crank and worm gear, toggle drive system for the lower platen

* The mobile platen stroke is increased from 71mm to 95mm for handling
corrugated board (especially AB Flute) smoother

* Stationary high precision upper platen

* Safety door and diechase safety locking system

* High torque pneumatic clutch/break for positive clutch on and reliable breaking,
and special air inlet system to control the air volume for smooth machine start and stop

* Air cushion underneath the cutting plate for easy cutting plate in and out

* Gear main drive

* Overloading protection torque limit clutch

* State-of-the-art 3 cam index gripper chain drive

* Center line system compatible to Center Line II, makes the cutting die and
stripping die centered quickly

* 8 high quality precision alloy gripper bars, each with 12 special hardened grippers to
ensure firm grab of the sheet at high speed

* Sheet arrival and departure check photo sensor

* Left and right front lay locking blocks, separating and synchronizing adjustment available

* Chain guide rail use VL compound to improve abrasive resistance and seismic resistance

* Self-diagnostic trouble display

* Digital speed display

* Automatic recycling lubrication system with oil pressure gauge and oil pressure switch

* Automatic main gripper drive chain lubrication
