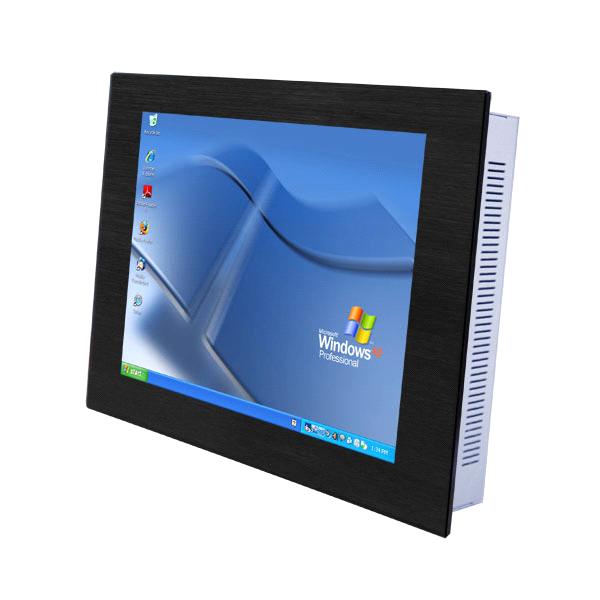

17'' LCD industrial touchscreen panel PC IEC-617DF(Atom D525,6COM,WIFI,DC12/8-28V)
| Supply Ability: | 5,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 3-5days |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Cartons |
Specifications
17" LCD Industrial Panel PC with Intel D525 dual-core Processor
Features
1.17" TFT LCD Panel support 1280x1024 pixels
2. Intel Atom D525 dual-core processor 1.8GHz/1MB L2 cache
3.300cd/m2 brightness
4. Material:Aluminium magnesium alloy(Better than Aluminium)
5. Resistive Touchscreen
6. 6*COM(2*RS232/422/485), 1*PS/2, 1*VGA, 1*LPT, 4*USB, 2*GLAN, 1*Audio
7. 1xPCI,Wifi optional
8.NEMA4/IP65 compliant front panel
9. Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting
Specifications
System
Motherboard: IEC-817N2V Motherboard
CPU: Intel Atom D525 dual-core processor 1.8GHz/1MB L2 cache
RAM (Memory) :2G DDR3
Network :2x Intel 82574L Gigabit LANs
HDD (hard disk ) :2.5" HDD SATA 250G
Display: Intel GMA3150, Up to 256M display
I/O Connector : 6*COM(2*RS232/422/485), 1*PS/2, 1*VGA, 1*LPT, 4*USB, 2*GLAN, 1*Audio
Expansion: 1xPCI, Wifi optional
Construction: Aluminum magnesium alloy
Color: Black
Installation :Install on desk,Hanging on the wall or VESA cantilever install
Power connector: 3 Pin connector
Power Supply : DC 12V input ,DC 8V~28V input(Optional)
LCD Panel
Display type : 17" TFT LCD
Resolution: 1280x1024
Luminance : 300 cd/m2
Contrast Ratio : 700:1
Touchscreen
Type: Resistive Touchscreen
Controller Interface: Internal USB ( RS-232 interface option)
Light Transmission: 81% or more
Operating Force : ≤250g
Life Expectancy :10 Millions
Environmental Specifications
Oprerating Tempreture :-10 °C to 50°C
Storage Humidity: 5% to 95%@ 40°C , non-condensing
Vibration: 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock: 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel): IP65
Safty: FCC/VDE(Level A)
MBTF: >50,000 hrs
Packing info
Dimensions(WxHxD): 432x346x79.7 mm
Packing Dimension : 565x420x150 mm
NET weight : 8 KG
Exporting packing: User manual x1,Warranty card x1, Touch pen x1, Screws x1 bag, Driver CD x1,Clipx4,Packing list x1
Ordering informations
IEC-617DF : IEC-617DF Chassis,17" TFT LCD, 17" Touchscreen, IEC-817N2V Board, Intel Atom D525 dual-core processor 1.8G CPU, DDR3 2G Ram, 2.5" 250G SATA HDD,6*COM(2*RS232/422/485), 1*PS/2, 1*VGA, 1*LPT, 4*USB, 2*GLAN, 1*Audio
