Nanyang Nantai Experimental Equipment Co., Ltd.
China Manufacturer with main products: Injection Pump Test Bench, Common Rail Injector Test Bench, Testing Equipment, Injector Test Bench, Common Rail Test Bench, Common Rail Tools... |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|

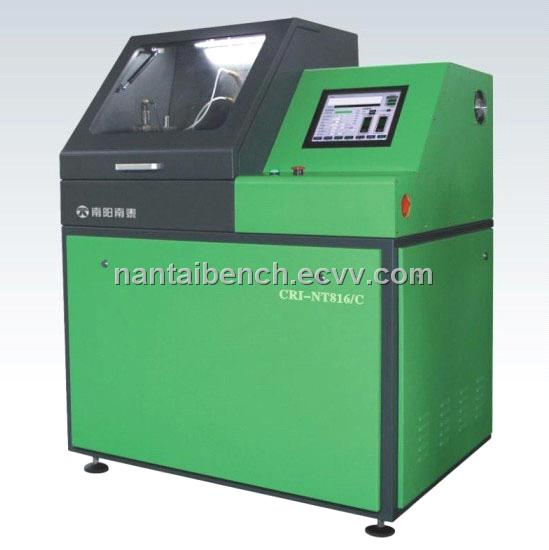

Specifications
Main technical parameters:
1. Rated output power: 7.5KW
2. Oil pump rotation speed: 0-3500rpm
3. Test rang of rail pressure: 0-1800bar
4.Test precision of rail pressure:±0.5Mpa
5.Test temperature of test oil:40±2℃
6. Filter precision of test oil: less than 5μ
7. Capacity of tank: 28L
8. Dimension: 1200X560X1650MM
9. Aggregate weight: 350KG
10. Electricity: 380V, 50Hz, 3 phase
11. Color of test bench : Green /yellow or on request
Functions:
1. High pressure washing: faults caused by pollution from injector can be corrected.
2. Injection volume test: injection & return volume in different working conditions such as rating, idling, correction and pilot injection be tested through the flow sensor. Monomial and overall property of injector can be judged automatically
3. Atomization test: Observe to judge atomization effect of injection nozzle and whether the injector orifice is obstructed.
4. Sealing performance test: check whether nozzle, nozzle cap nut and electromagnetic valve body leak oil.
5. Inquiry, store and print data and custom information.
Characteristics of Equipment:
1.Export model.
2. Industrial Temperature control system to realize constant oil temperature
3. Precision of rail pressure adjusted by DRV is high
4. Computer control, 10.4 inch liquid crystal rolling display, touch-type operation.
5. Original Germany flow senor equippped to measure the fuel quantity.
6. Original Bosch common-rail pump and pressure rail system are provided according to CP1 standard
7. Frequency control of the motor speed can realize the functional tests in different rotation speed.
8. Precision measurement, simple operation, low noise, and energy conservation.
9.Test both solenoid valve common rail injectors and piezo injectors.
