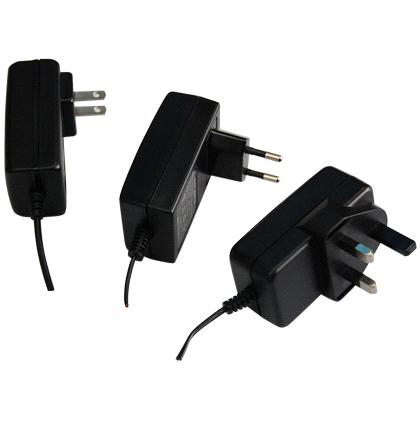

AC-DC Wall Mounted Power Adapter

FOB Price:	2.98 - 8.99 USD/Piece
Supply Ability:	1,000,000 Piece/Pieces per Month
Shipping:	5-7 work days after payment received
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

High Power WiFi 18000G USB Adapter 12DBI Antenn...

Price:8.90-15.90 USD/Piece

Min. Order:50 Pieces
Universal Adaptor

Price:1.00-1.50 USD/Piece

Min. Order:1000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	PE bag package+white box

Specifications

AC-DC Wall Mounted Power Adapter

Description:
1. Universal Input: 100~240VAC 50~60Hz
2. Protections: Short circuit/ Overload/ Over temperature
3. O/P: High accuracy, low noise; Hold up time≥ 20mS
4. Cooling by free air convection; Auto recovery;
5.100% full load burn-in test for 8 hours
6. High Efficiency, high reliability;
7. Built-in Class B EMI Filter
8. Long life of 50, 000Hours, 2 years warranty
9. Compliance to EN60950 / UL60950 / EN55022

SPECIFICATION
MODEL		SRA-8V-18W-3	SRA-14V-18W-3		SRA-17V-18W-3		SRA-22V-18W-3
OUTPUT	DC VOLTAGE	8V	14V		17V		22V
	RATED CURRENT	2.25A	1.3 A		1.0A		0.8A
	CURRENTRANGE	0~2.25A	0~1.3A		0~1.0A		0~0.8A
	RATED POWER	18W	18W		18W		18W
	RIPPLE& NOISE(max)	100mVp-p	150mVp-p		200mVp-p		200mVp-p
	LINE REGULATION	± 1%	± 1%		± 1%		± 1%
	VOLTAGE TOLERANCE	± 5%	± 5%		± 5%		± 5%
	SETUP TIME	1000ms@110VAC; 600ms@230VAC
	RISE TIME	50ms@110VAC/230VAC
	HOLD UP TIME	20ms@230VAC
INPUT	VOLTAGERANGE	90~264VAC		FREQUENCYRANGE		47~63Hz
	POWER FACTOR	PF> 0.65
	EFFICIENCY (Typ. )	73%	74%		74%		75%
	AC CURRENCY	0.45A/110VAC, 0.20A/230VAC
	INRUSH CURRENT	COLD START 60A/230VAC
	LEAKAGE CURRENT(max)	0.75mA / 230VAC
	ENERGY CONSUMPTION	The consumption should be less than 0.5 Watt at normal input
	INPUT PLUG TYPE	UL, VDE, BS, SAA, CCC and PSE are available
ENVIROMENT	WORKING TEMP.	-10~+40
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP. HUMIDITY	-25~+80, 10%~95%RH
	TEMP. COEFFICIENT	± 0.03% / (0~50)
	VIBRATION	10~500Hz, 2G 10min. /1cycle, period for 60min. each along X, Y, Z axes.
OTHERS	DIMENSION (mm)	733561mm (LWH)
