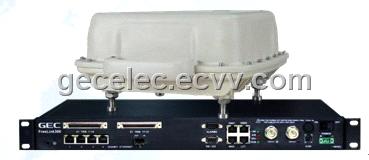

Digital microwave transmission system(ODU+IDU) Smartlink 30/60: up to 80Mbps
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Introduction
SmartLink60 system can support 3.5MHz, 7MHz, 14HMz,28HMz standard microwave channel bandwidth via configuring by software. The capacity of data transmission is up to 80 Mbps. Two business modes are available: E1+IP mode, IP-only mode.the transmisson capacity of different business under E1+IP can be adjusted flexibly. Which is suitable to the application of multi-modes network and evolution network.
SmartLink60 system can support 3.5MHz, 7MHz, 14HMz,28HMz standard microwave channel bandwidth via configuring by software. The capacity of data transmission is up to 80 Mbps. Two business modes are available: E1+IP mode, IP-only mode.the transmisson capacity of different business under E1+IP can be adjusted flexibly. Which is suitable to the application of multi-modes network and evolution network.
Application
1.The backhaul transmission among base stations for GSM, CDMA,3G/4G;
2.PSTN extension;
3.Internet, private network connection;
4.Application industry(Petrol, . Bank, Army, CATV)
1.The backhaul transmission among base stations for GSM, CDMA,3G/4G;
2.PSTN extension;
3.Internet, private network connection;
4.Application industry(Petrol, . Bank, Army, CATV)
Features
1. Multi-business service: support single PDH/ IP service. And PDH with IP service
2. Multi-capacity: Provide 3.5MHz, 7MHz, 14MHz, 28MHz channel bandwidth. The maximum transmission capacity is up to 80Mbps
3. Alterable business configuration: For E1+IP mode, the whole capacity is shared by E1 and IP, which can be adjusted flexibly.
4. Diverse IP function: support L2 switching, VLAN, QinQ, flow control and QoS.
5. Multi-modulation: support QPSK~32APSK. Support ACM
6. Easy maintenance: in-build BITE test system, error test can be proceeded without any test tools;
7. Anti-multipath fading: support adaptive equalization;
8. Multi-frequency: support 6,7,8,11,13,15,18,23,26,32,38GHz;
9. Easy installment: connect IDU and ODU with single cable (300M longest);
10. High integration: support 1 + 1 protection function in one IDU;
11. Multi-management: support the management of one or more network elements by local Web LCT, support the centralized management of EMS/NMS software.
1. Multi-business service: support single PDH/ IP service. And PDH with IP service
2. Multi-capacity: Provide 3.5MHz, 7MHz, 14MHz, 28MHz channel bandwidth. The maximum transmission capacity is up to 80Mbps
3. Alterable business configuration: For E1+IP mode, the whole capacity is shared by E1 and IP, which can be adjusted flexibly.
4. Diverse IP function: support L2 switching, VLAN, QinQ, flow control and QoS.
5. Multi-modulation: support QPSK~32APSK. Support ACM
6. Easy maintenance: in-build BITE test system, error test can be proceeded without any test tools;
7. Anti-multipath fading: support adaptive equalization;
8. Multi-frequency: support 6,7,8,11,13,15,18,23,26,32,38GHz;
9. Easy installment: connect IDU and ODU with single cable (300M longest);
10. High integration: support 1 + 1 protection function in one IDU;
11. Multi-management: support the management of one or more network elements by local Web LCT, support the centralized management of EMS/NMS software.
Protection Configuration
1+0
1+1(HSB/FD/SD)
1+0
1+1(HSB/FD/SD)
Network Management: E1000 EMS(Element Management System)
