Suzhou Rico Machinery Co., Ltd.
China Manufacturer with main products: CNC Router, CNC Wood Router, Signs Router, Wood Turning Lathe, MDF Cutting Machine, CNC Laser Machine, Slatwall Cutting Machine, CNC Cutter... |
Simple Auto Tool Change Wood Door Making CNC Router
| Supply Ability: | 100 Set/Sets per Month |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Standard exported wooden case |
Specifications

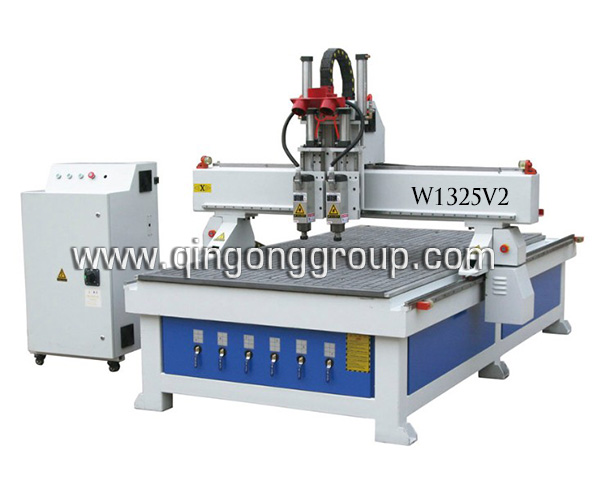

Simple Auto Tool Change Wood Door Making CNC Router
Model: W1325V2
Standard Features:
1. It's a high performance-to-price ratio ATC machine, can work with 2 different kinds of tools without stop.
2. Lathe bed is welded with thick channel steel and square tubes; processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; Ensure excellent stability, not easy to be deformed.
3. Three axes adopt Taiwan Hiwin high precision square guide rails; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany rolling ball screw, with high precision and longevity.
4. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
5. Has the function of re-carving after break point and power failure.
6. Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
7. Perfect lubricating system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient.
9. Adopting air-cooling system, it can provide good cooling effect when carving flinty materials.
Applicable industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Applicable materials:
Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal.
Processing effect:
It is widely used for cutting, milling, drilling, engraving various shade vulture, relief, etc.
Technical Parameter:
|
Description
|
Parameter
|
|
X,Y Working Area
|
1300*2500mm
|
|
Z Working Area
|
200mm
|
|
Resolution
|
0.05mm
|
|
Lathe Structure
|
Seamless welded steel structure,
better than cast iron one
|
|
X,Y Structure
|
Rack and pinion transmission, Hiwin square guide rail
|
|
Z Structure
|
Germany rolling ball screw, Hiwin square guide rail
|
|
Max. Idling Speed
|
30m/min
|
|
Spindle
|
3.0KW per spindle
|
|
Spindle Rotate Speed
|
0-24000r/min, variable speed
|
|
Working Voltage
|
AC380V/50Hz
|
|
Working Mode
|
Stepper
|
|
Command
|
G code (HPGL,U00,mmg,plt)
|
|
Operating System
|
DSP with USB interface
|
|
Diameter of cutter
|
φ3.175-φ12.7mm
|
|
Cooling Mode
|
Air-cooling
|
|
Dust-collect Function
|
Yes
|
|
Work-holding
|
By suction and clamp
|
|
Net Weight
|
1500KG
|
|
Software
|
Type 3, ArtCam, Wentai
|
Service Guarantee
-
Free Service Charge
