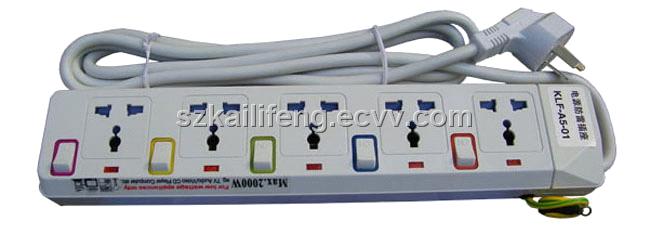

Five holes power surge protection socket:KLF-A5-01

Supply Ability:	5,000 Piece/Pieces per Month
Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

PCB Depanel

Price:

Min. Order:
Solder Paste Properties SMT Online PCB Process ...

Price:1.00 USD/Set

Min. Order:1 Set
Small Prototypes Pick and Place Robert NeoDen4(...

Price:7,499.00-8,039.00 USD/Set

Min. Order:1 Set
Anti Static Ionizing Bar Induction Anti Static ...

Price:50.00-150.00 USD/Piece

Min. Order:1 Piece
Smart Mirror TV with Touch Screen

Price:600.00 USD/Piece

Min. Order:10 Pieces
Automatic Lightning Surge Generator used to tes...

Price:1.00-9,000.00 USD/Set

Min. Order:1 Set
IC Crack TMS320F2810 | PCB OEM

Price:10.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Africa, Western Europe
Place of Origin:	Guangdong in China

Specifications

1)Product description:

This product is suitable for lightning protection zone: lightning surge protection of LPZ2 area at the junction with the LPZ3 (D level) power lines.

◆ It has six international standard jack socket and is designed as modular , is easy to install;

◆The material of its shell use imported fire-retardant materials,its set of components plug bush is phosphor bronze , the products meet international standards and national standards.

◆With advantage of low residual voltage, fast response and long life, built-in overcurrent, overload protection.

◆It can be inserted 16 kinds of different plugs, full use of every outlet.

◆It is mainly applied to the lightning protection (overvoltage) protection of low-voltage single-phase AC power supply (220V AC)system electrical and electronic equipment.Such as telecommunications equipment, computer and network equipment, medical instruments, precision electronic equipment, household appliances and so on.

2)Technology parameters:

TYPE:	KLF-A5-01
Protection Class:	D
Rated voltage Un(V)	220V
Nominal Discharge Current (8/20μ s) (In):	10KA(8/20μs)
Max. Discharge Current (8/20μ s) (Imax. ):	20KA(8/20μs)
Voltage Protection Level Up(KV):	≤1.0KV(20KV 8/20μs)
Max. Continuous Operating Voltage (Uc):	320V
Voltage Protection Level( Up):(V)	≤700V
Response Time:(ns)	＜20ns
Leakage current(μA):	≤20μA
Maximum load current(A)	10A
Protection Mode:	L-PE, N-PE
Interface Model:	Five holes trinom
Working Environment:	Temperature: -40°C+80°C;Relative humidity: <95%;
Power source jumper length	2.4 meter
Dimension(mm):	335×66×34mm
Weight(kg):	0.672
Order coding:	DDC002
