Ruian Antai Pharmaceutical Machinery Co., Ltd.
China Manufacturer with main products: Blister Packing Machine, Capsule Filling Machine, Automatic Cartoning Machine |
Home
>Products Catalog > Paper Plastic Packing Machine > HP-500A/B Automatic Paper Plastic Packaging Machine

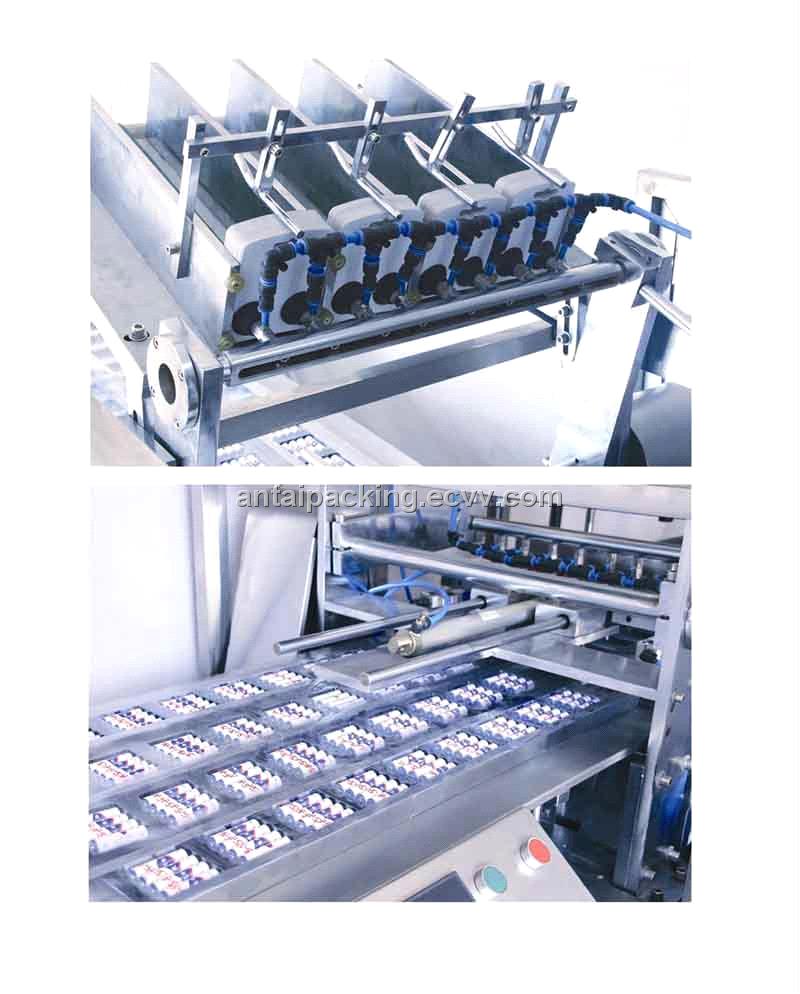

HP-500A/B Automatic Paper Plastic Packaging Machine
| Supply Ability: | 1 Set/Sets per Month |
|---|---|
| Shipping: | BY SEA |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | EXPORT WOODEN CASE |
Specifications
Paper Plastic Packaging Machine Application / Paper Plate Forming Machine Range:
This packing machine is suitable for paper plastic packing of such products as cakes, injection, injectors, toy cars, scissors, flashlights, batteries, spark plugs, tooth brushes, lipsticks, facial masks, coat & hat hooks, chopsticks, cleaning balls, bottle openers, shavers, correction liquids, ball pens etc. in food, medicine, medical equipment, toys, small hardware, small household appliances, electronics, automobile and motorcycle fittings, daily products, cosmetics, rubber & plastic products, table wares, kitchen wares, recreation & sports and other industries.
Paper Plastic Packing Machine Main performances and structure features:
Packing forms such as positive pressure forming, feeding, thermal sealing, tearable opening cutting, finished products conveying etc are adopted. Featured by simple structure and convenient operation.
The 304 stainless steel cover is adopted, which conforms to GMP requirements. Featured by beautiful shape and convenient cleaning.
Frequency conversion speed adjustment, color touch screen (man-machine interface) and PLC control system are adopted. With high output, low noise, clearer and more convenient operation, and high automation degree, the machine is more user-friendly.
Servo motor stepless travel control is adopted.The travel adjustment is simple and mold replacement is convenient.
The photoelectric control is adopted. When the PVC sheet is used up or the paperboard is insufficient, buzzer alarm will be sent.
The whole machine adopts the split design, so as to facilitate transportation and traveling in and out the elevator.
The winding plastic sheet feeding device is used to save large amounts of packing material.
The mold and automatic feeder can be designed according to user requirements and materials to be packed.
Paper Plastic Packing Machine Main Technical Parameters:
|
Cutting frequency
|
8-20times/min
|
|
Stroke range
|
40-130mm
|
|
Air pressure
|
0.5-0.8Mpa
|
|
Air flow
|
≥0.5m3/min
|
|
Total power
|
380V 50HZ 7KW
|
|
Main motor power
|
1.5KW
|
|
Maximum specification of PVC
|
480*130mm
Design according to customer requirement is also available
|
|
Maximum specification of paperboard
|
500*150(Design according to customer requirement is also available)
|
|
Overall Dimension
|
3750*920*1650mm (L*W*H)
|
|
Machine weight
|
2100KG
|
