70-165 semi-circular (5 inches, 6 inches, 7 inches) metal water channel roll forming machine
| Supply Ability: | 20 Set/Sets per Year |
|---|---|
| Shipping: | 30-40 days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | no packing |
Specifications
70-165 semi-circular (5 inches, 6 inches, 7 inches) metal water channel roll forming machine

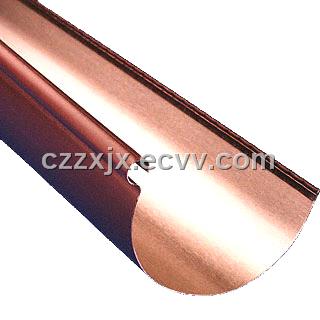

The advantages of rainspout
The rainspout adopting color plate or aluminium plate gets by rolling and closed forming, bending by special equipment, reducing forming. Excellent weather ability, briefness design, easy installation, safety, rich color etc. Its rich color ,metal texture, beautiful modeling brings strong expression for building .It uses for villa multi-storey building, providing new added-space for real estate developer; bring new idea for designer. Great meet the high-end group growing residential psychological need.
Process flow:
decoiling→guiding &feeding→rolling forming→pressing→cutting→running out
Technical parameters:
Rolling speed: 8-12m/min
Raw material thickness: 0.5-0.8mm
Raw material: aluminium plate
Raw material width: 275 mm
Forming roll: 16 rollers
Roll materials: 45#steel
Roll surface coating hard chromium: 0.05mm
Main shafts:φ60mm
Spindle materials: 45#steel
Main power: 4kw
Reducer: Cycloidal motor reducer
Drive: by gear chain
Finished cutting: automatic hydraulic cut off,
Hydraulic power: 3kw
Controller: PLC auto system
Host structure: wallboard structure
Overall dimensions: abt. 8200*850*1000mm
Machine weight: abt. 5000-6000kg
THE characteristics and structures of main structure
1, Main structure characteristics:
A. Simple structure and beautiful outlook, rack adopts h-beam welding base, wallboard structure, and overall intensity high, Suitable for the high intensity load.
B. Equipment other important Components adopt domestic famous enterprises and effectively ensure the equipment performance from surface.
C. using full-automatic fixed-length molding blunt type and cut off, fixed-length accurate location, strip shape head and tail beautiful tidy, changeless form.
G. equipment installation is convenient and suitable for factory production.
H. equipment noise is low and high efficiency.
2, Equipment composition:
l Put rack: a set
l Molding host: a set
l Finished cut institutions: a set
l Electric control cabinet: a set
l Hydraulic system: a set
l Bracket: a set
