Ningbo Zhongcheng Knitting Machine Co., Ltd.
China Manufacturer with main products: Flat Knitting Machine, Knitting Machine, Textile Machine, Computerized Flat Knitting Machine, Knitting Machinery, Automatic Flat Knitting... |
textile machinery
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | after receive deposit , 14-21days delivery to Ningbo Port ,the balance before shipment |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden case 3080*1070*1700 |
Specifications

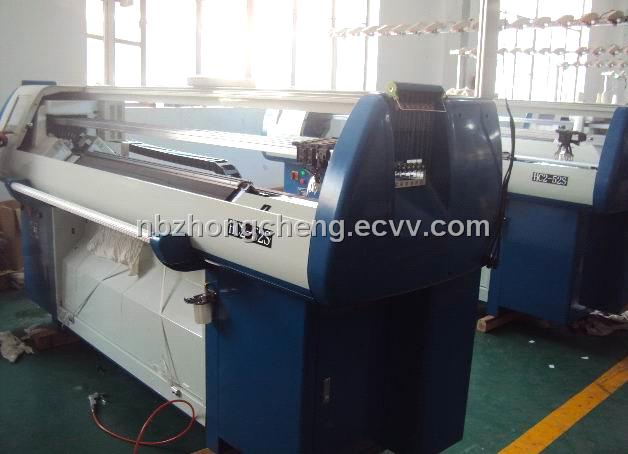

HECEHGN brand computerized flat knitting machine
1.single carriage double system
2.knitting width:52inch
3.warrant two years
4.mini order : 1set
the specification as follows:
1.single carriage double system
2.knitting width:52inch
3.warrant two years
4.mini order : 1set
the specification as follows:
|
Gauge
|
5G 7G 9G 12G 14G 16G 5-7G
|
|
Knitting width
|
52, (inches)(132CM)
|
|
Knitting function
|
Knit ,miss,tuck,transfer,pointel,intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns.
|
|
Knitting speed
|
Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition .
|
|
Knitting system
|
Single carriage with double system
|
|
Needle bed
|
Replaceable segment needle bed
|
|
Takedown roller
|
Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99.
|
|
Transfer
|
Combined cam box single or double system can work independently and one system can transfer the sititch While the other system keeps knitting.
|
|
Racking
|
Controlled by servo motor racking within 2 inches and with fine adjusting function.
|
|
Protection
|
The machine will automatically alarm if yarn-breakingknotsfloating yarnrewindend of knitting, fail of rackingneedle breakageerror programming occur.
|
|
Stitch system
|
Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
|
|
Encoder
|
Advanced encoder adopted.
|
|
Yam carrier
|
2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special intarsia carriers available).
|
|
Sinker system
|
Controlled by stepping motor, adjustable to defferent knitwear, have various results of shapping and patterns.
|
|
Power
|
Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop.
|
|
Controller
|
1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements.
|
|
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade.
|
|
|
3. Free design is visual and easy to understand and upgrade
|
|
|
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to custerms requirement .
|
|
|
Volume and weight
|
Length×width×height: 3080×1070×1700mm Net weight :1280kg
|
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
