Zibo Yao Xing Fire-Resistant & Heat-Preservation Material Co., Ltd.

Home >Products Catalog > ceramic fiber board > heat insulation ceramic fiber board

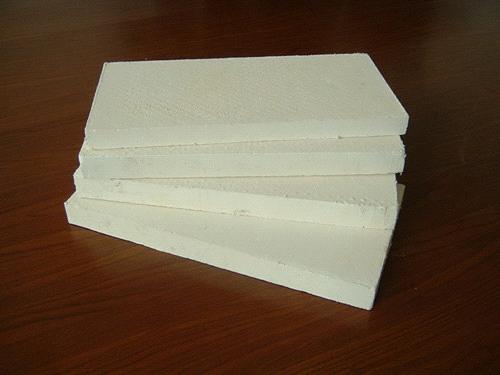

heat insulation ceramic fiber board

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Plastic bags inside,Cartons outside

Specifications

Product Series:

l YAOXING 1050 Ceramic Fiber Board YXTX-134

l YAOXING 1260 Ceramic Fiber Board YXTX-234

l YAOXING High Pure Ceramic Fiber Board YXTX-334

l YAOXING High Aluminum Ceramic Fiber Board YXTX-434

l YAOXING High Zirconium Ceramic Fiber Board YXTX-534

Technical Index:

Type		Common	Standard	High Pure	High Aluminum	High Zirconium
Code		YXTX-134	YXTX-234	YXTX-334	YXTX-434	YXTX-534
Classification Temperature		1050	1260	1260	1400	1400
Shrinkage on Heating (%)		950℃×24h≤-3	1000℃×24h≤-3	1100℃×24h≤-3	1200℃×24h≤-3	1350℃×24h≤-3
Theoretical Thermal Conductivity (W/m·k)(128kg/m3)	(200℃average) (400℃average) (600℃average)	0.045-0.060 0.085-0.110 0.152-0.20			0.052-0.070 0.095-0.120 0.164-0.210
Theoretical Density (kg/m3)		96/128			128	96/128
Specification (mm)		1200/1000/900/600×1000/600/400×10/20//30/40/50 According to your requirements
Tensile Strength (25mm thick) MPa		0.5
AL2O3(％)		≥44	≥45	≥45	52~55	38~40
ZrO2((％)		－				15~17
AL2O3＋SiO2(％)		≥96	≥97	≥99	≥99	—
AL2O3＋SiO2+ZrO2(％)		—	—	—	—	≥99
Fe2O3(％)		≤1.2	≤1.0	≤0.2	≤0.2	≤0.2
K2O+Na2O(％)		≤0.5	≤0.5	≤0.2	≤0.2	≤0.2
Package		Plastic Bag Inside, Carton Box Outside
Quality Control System		ISO9001-2000, ISO14001-1996

Note: As the special provisions, the package volume of the Thk12.7㎜ and Den360～400 Kg/m3 is 16PCS/Carton

Application:

l 1.Heat preservation and insulation materials as the back lines for the kilns in the field of cement building

l 2.Heat preservation materials as the back lines for the kilns in the field of ceramic

l 3.Heat preservation materials as the wall lines and back lines for the kilns in the field of metallurgy and petrochemical industry

l 4.Heat preservation materials as the wall lines and back lines for the Glass furnace.

l 5.Refractory and insulating materials for heat treatment equipment

l 6.The back lines of refractory brick for electrolytic reducing bath in aluminum factory

l Materials of the wall lines and back lines of heat and pyroreaction equipment
