Guangzhou anhell Electronic Co., Ltd.
China Manufacturer with main products: Home Theatre, 2.0 Speaker, 2.1 Speaker |

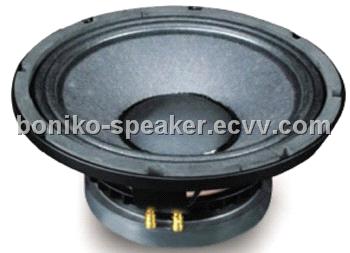

10 inch mid and bass transducer
| FOB Price: | 1.00 - 50.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 10-15 working days |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | packed with cardboard and carton box |
Specifications
General Specifications:
Nominal Diameter:10 inch
Rated Impedance:8 Ohm
Power Handling Capacity:150 Watts
Sensitivity 1W,1M:96.7dB
Effective Pistion Diameter:210mm
Voice Coil Diameter:51.5mm 2 Inch
Parameters
Resonance Frequency: 51 Hz
DC Resisstance:6.2 Ohm
Mechanical Q Factor:4.0
Electrical Q Factor:0.65
Total Q Factor:0.56
BL Factor:11.4 TM
Effective Moving Mass:36.8 gr
Equivalent Cas Air Load:33.6 Liters
Effective Piston Area:0.036㎡
Half-Space Effciency:1.1%
Top Palte Thickness:6.0 mm
Voice Coil Height:13.0 mm
Voice Coil Over-Hung:3.5 mm
Physical Information:
Basket:Black Stanmp Steel
Magnet Type,Size OdxIDxH(mm):170x85x20 60OZ
Voice Coil Former:Kapton 400℃
Voice Coil Material:Copper Wire 300℃
Cone Material:Pulp Paper
Surround:Treated Cloth
Spider:Cotton Blen Polyester
Dust Cap:Pulp Paper
