Automatic Ice Cream Filling Machine with 2 Lines
1> filling ice creams like cones and cups ice cream, single colored, dual-colored and different flavor ice creams
2>The multiple functions is as below
Primary Filling →Secondary Filling (Spiral)→Chocolat Dip→ Nutmeat-Dip
→Pressing-Sealing Paper Cover for Egg-Roll Cone
→Paper Cover Drop→ → Jack-Up
→ Heating-Sealing Paper Cover for paper Cups
2>The applicable containers for this machine are listed as round cups, square cups, and egg-roll cones. 3>Different Shapes of ice-creams can be achieved by changing both different feeding spouts and the cup support.
4>A 3-arraycrawler acts as the cup support, and driven by a high-precision cam dividing head, the cup crawler may make a progressive motion intermittently, by which the machine may achieve smooth operation and accurate position. Both the speeds of the cup support operation and the spiral filling are adjusted variably with a converter.
5>imported PLC for the control system
Ensuring its stable and reliable performance while it uses the imported man-machine interface touch screen for operation, by which the indication for the automatic fail-check is easy and visual.
Main Parameter:
|
Main Technical Data
|
|||
|
Production Capacity
|
5000cups/hr
|
Power
|
380v,50Hz
|
|
Power Horse
|
3.3KW
|
Air Source Pressure
|
0.5Mpa
|
|
Overall Size
|
2.5x0.7x1.9(m)
|
Weight
|
1100kg
|

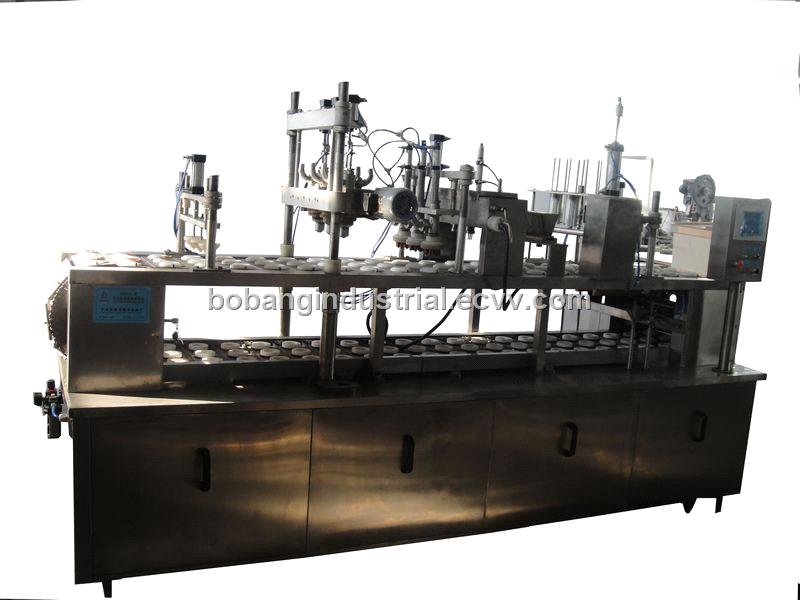

Enclosed photo is line Ice cream filling machine.We also can produce the rotary ice cream filling machine.
