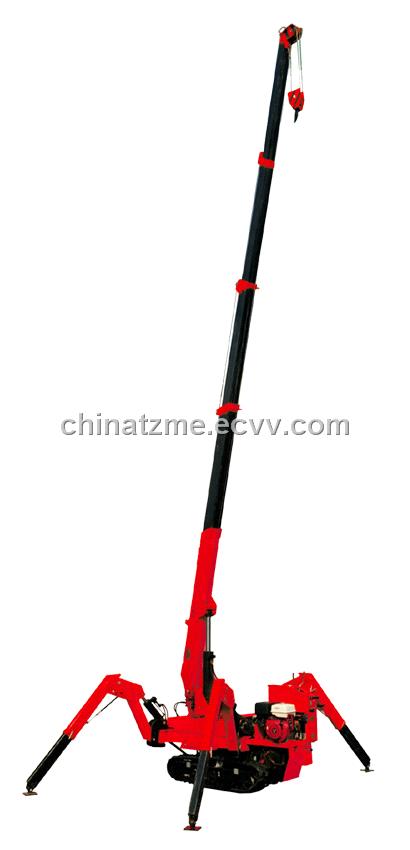

Mini Crawler Crane

Inquiry Now

Export Markets:	South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia
Place of Origin:	Hunan in China

Specifications

Mini Crawler Crane
1.Rated capacity:3 T
2.max working radius:8.3m
3.Max lifting height:9.2m
4.Remote control, load moment limiter optional.

Crane rated capacity		3.0t
Max. working radius		8.3m
Max. lifting height		9.2m
Winch system	hook speed	0-2.5m/min
	hoist wire rope	8mm
	wire rope length	50m
Telescoping system	type	5-section hydraulic full-auto booms
Telescoping system	Boom length	9m
Boom hoisting system	luffing angle	0-75°
Swing system	swing angle	360°(continuous)
Outrigger	max.extended width	4.3 x 3.4m
Travel system	type	synthetic rubber
	travel speed	0-1.4km/h
	gradability	20°
	ground pressure	37kpa
Engine	model	GX390
	displacement	389.2ml
	continuous rated output	6.6KW
	starting method	electric staring
Overall (length x width x height)		2850 x 760 x 1450mm
Machine weight		1800Kg
Options		wireless remote control, computer parameter monitor, 3 phase electric motor driven
