Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th
Foton Sliding Platform Wrecker
| FOB Price: | 29,000.00 - 34,000.00 USD/Set |
|---|---|
| Supply Ability: | 20,000 Set/Sets per Year |
| Shipping: | Ro-Ro shipment or bulk shipment |
| Payment Terms: | L/C, T/T, Western Union, numm |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Bulk shipment or Roro shipment |
Specifications

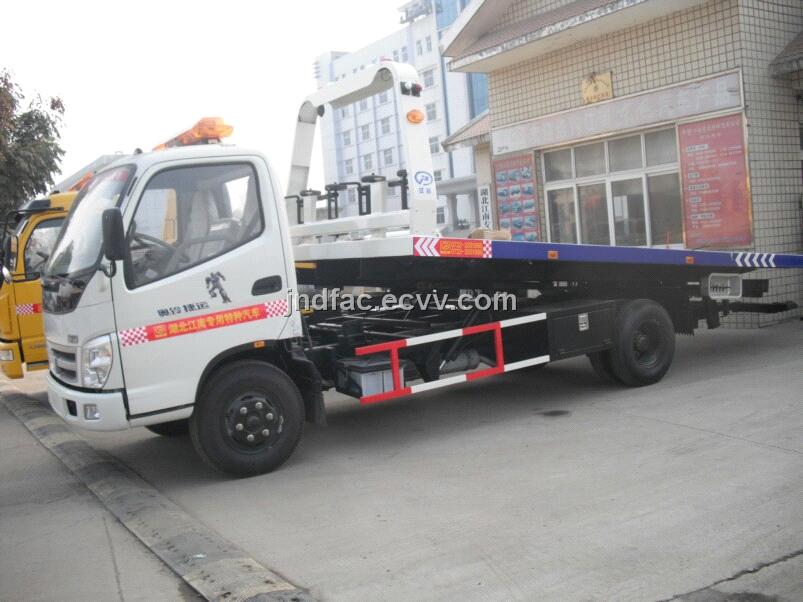

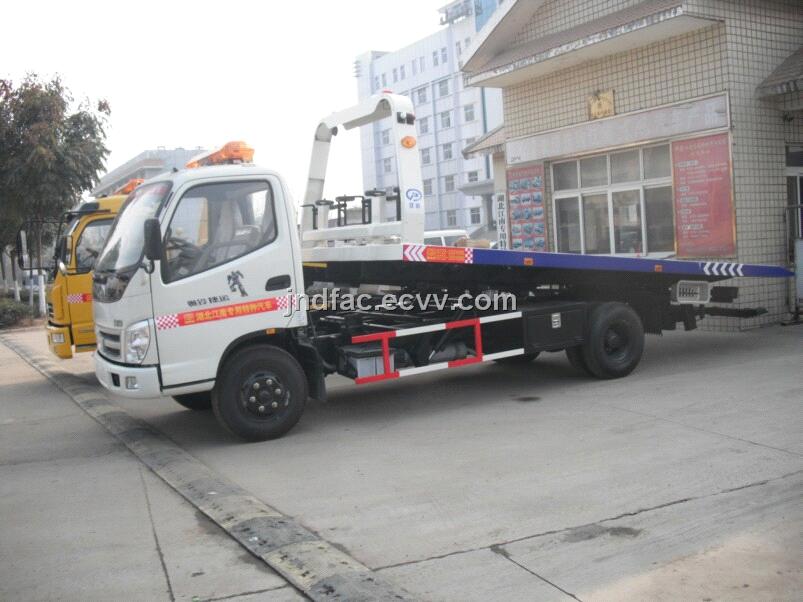

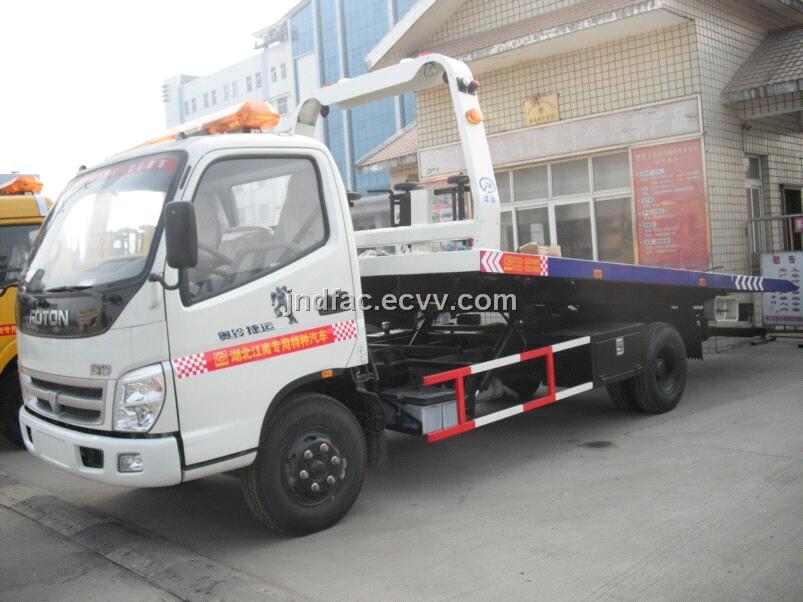

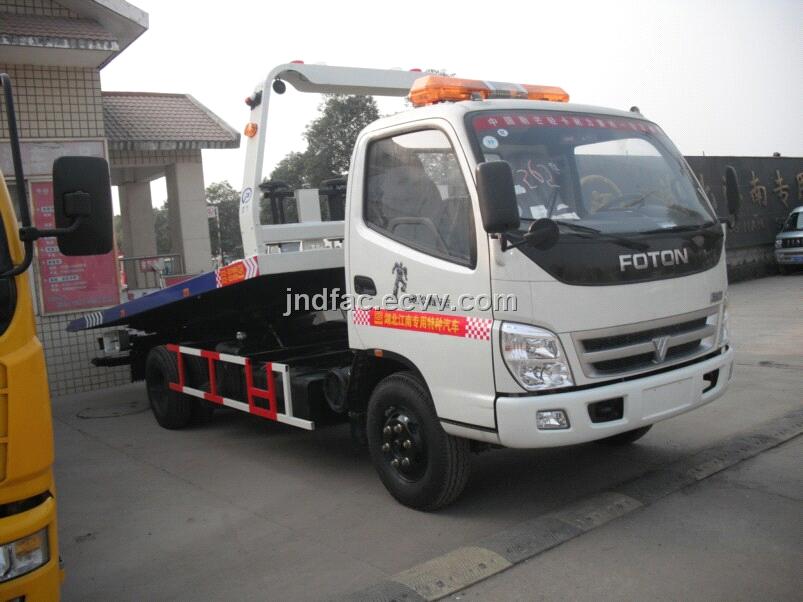

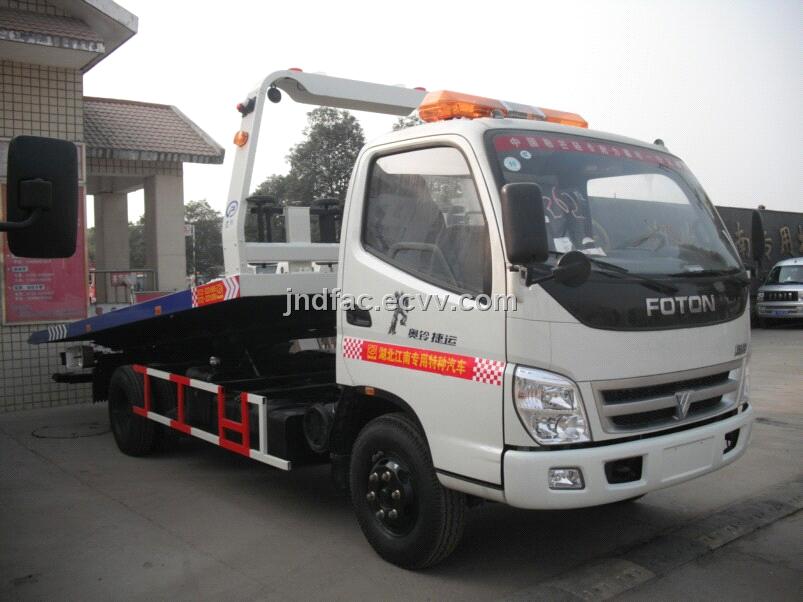

Foton Sliding Platform Wrecker
1.Air conditioner optional
2.Tow Truck equipped with traffic warning light
3.Max .pulling quality : 6495kg
4.One-drive-two slab , can deal with 2 cars .
Pfofessioner road wrecker producer , all producer passed CCC &ISO9001 quality standard , we can provide Rollback flatbed wrecker , Sliding platform car carrier , Light duty breakdown truck , Medium duty tow truck , Heavy duty recovery truck
For more information pls contact
1.Air conditioner optional
2.Tow Truck equipped with traffic warning light
3.Max .pulling quality : 6495kg
4.One-drive-two slab , can deal with 2 cars .
Pfofessioner road wrecker producer , all producer passed CCC &ISO9001 quality standard , we can provide Rollback flatbed wrecker , Sliding platform car carrier , Light duty breakdown truck , Medium duty tow truck , Heavy duty recovery truck
|
Entire vehicle
|
Type
|
JDF5060TQZB
|
|
|
Dimensions parameter
|
Length(mm)
|
7390
|
|
|
Wide(mm)
|
2320
|
||
|
High(mm)
|
2580
|
||
|
Wheelbase(mm)
|
3800
|
||
|
Mass parameter
|
Total weight(kg)
|
6495
|
|
|
Curb weight(kg)
|
5100
|
||
|
Chassis
|
Type
|
BJ1069VCJEA-D
|
|
|
Engine
|
Type
|
CA4DC2-12E3
|
|
|
Phaser135Ti-S30
|
|||
|
Power(kW)
|
88/101
|
||
|
Size of tire
|
7.50-16/8.25-16
|
||
|
Specialized device
|
Platform organ
|
L(mm)×W(mm)
|
5330×2300
|
|
Platform power stroke(mm)
|
2680
|
||
|
Min angle(0)
|
8
|
||
|
Max lifting capacity(kg)
|
3000
|
||
|
Winch rating pulling capacity(kg)
|
4000
|
||
|
Length of steel(m)
|
25
|
||
|
Hoisting organ
|
Max under-hoist useful length(mm)
|
1300
|
|
|
Rating under-hoisting capacity(kg)
|
1200
|
||
|
Fully extended max under-hoisting capacity(kg)
|
800
|
||
|
Rating under-pulling capacity(kg)
|
6495
|
||
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck ,Refrigerator van etc.
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck ,Refrigerator van etc.
For more information pls contact
Jessica Song
