Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

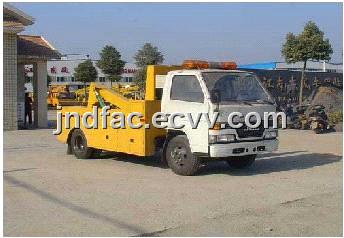

JMC Light Duty Integrated Tow Truck
| FOB Price: | 29,000.00 - 37,000.00 USD/Set |
|---|---|
| Supply Ability: | 20,000 Set/Sets per Year |
| Shipping: | Bulk shipment or roro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Waxed |
Specifications
JMC Light Duty Integrated Tow Truck/Recovery Truck
1.Boom & wheel lift intergrated
2.Max lifting capacity reach 4ton
3.Max pulling capacity reach 6ton
4.One year warranty , short lead time
5.It is an ideal choice for police , highway , garage to tow accident vehicle ,obstacle vehicle etc.
6.Passed CCC & ISO
Professional recovery vehicle manufacturer in China , all kinds of tow truck for choose
Slide platform / Car Carrier
Wrecker/ Recovery for trucks
Towing trucks
For more information pls contact
6.Passed CCC & ISO
Professional recovery vehicle manufacturer in China , all kinds of tow truck for choose
Slide platform / Car Carrier
Wrecker/ Recovery for trucks
Towing trucks
| vehicle | Type | JDF5060TQZJ | |
| Dimensions parameter | Length(mm) | 5995 | |
| Wide(mm) | 2090 | ||
| High(mm) | 2300 | ||
| Wheelbase(mm) | 3360 | ||
| Mass parameter | Max mass(kg) | 5790 | |
| Total mass(kg) | 3450 | ||
| Chassis | Type | JX1060TG23 | |
| Engine | Type | JX493ZLQ3/JX493ZLQ3A | |
| Power(kW) | 75/85 | ||
| Size of tire | 7.00-16 | ||
| Specialized device | Lifting organ | Max lifting capacity(kg)(Choosing) | 4000 |
| Max lifting high(mm)(Choosing) | 3630 | ||
| Lift-hoist telescope length(mm)(Choosing) | 1600 | ||
| Winch rating pulling capacity(kg) | 3500 | ||
| Length of steel(m) | 25 | ||
| Hoisting organ | Max under-hoist useful length(mm) | 1700 | |
| Rating under-hoisting capacity(kg) | 2210 | ||
| Full extend maximum lift quality | 1400 | ||
| Rated pulling capacity (kg) | 5790 | ||
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
