Tianjin LK Electric Automation Co., Ltd.
China Manufacturer with main products: 1. Card making equipments and manufacturing solutions, card laminator, card making machine, card laminating machine, card punching machine,... |

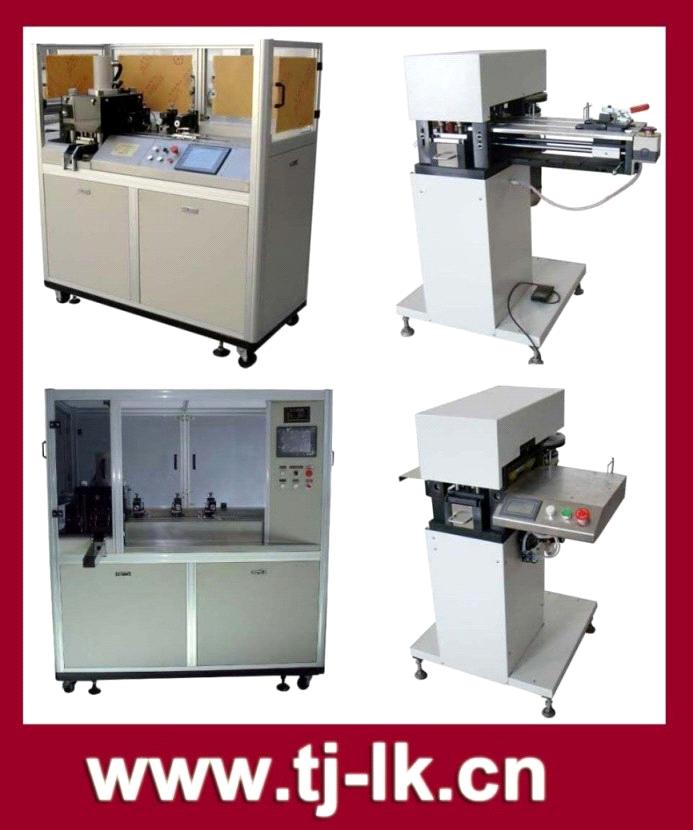

Card punching machine YCK-2A/3A/4A/5A/2AM/2AE
| Supply Ability: | 10 Set/Sets per Month |
|---|---|
| Shipping: | By sea |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | plywood case |
Specifications
For watching the video clip of these machines, please visit our official website.
Automatic Card Punch Machine YCK-2A 2*5
Automatic Card Punch MachineYCK-3A 3*8
Automatic Card Punch MachineYCK-4A 4*8
Automatic Card Punch MachineYCK-5A 5*5
Controlled through PLC by Japanese Omron, it adopts LC industry touch screen of WeinView MT6056i by Taiwan. The material feed system adopts the servo motor by Japanese YASKAWA, high-precise ball screw and plane guide imported from Japan in order to ensure smooth moving and accurate moving distance. It uses the high sensitive sensor from KEYENCE to read the position marks to ensure accurate and reliable location. The hydraulic pump from Taiwan is featuring low noise and large flow. The quality hydraulic valves from Taiwan and the American seals have long service life. The punching mould driven by hydraulic cylinder can work smoothly and reliably with low noise. The punch mould is made with imported Japanese mould steel. Its software function is strong; 5 cards can be set into different step distances. Punching precision can be ensured even in the situation of material distortion or mechanical abrasion. Punching speed is 30% higher than other brand product.
Automatic Card Punch Machine YCK-2A 2*5
Technical parameters
- Material: 0.3~1.0mm all kinds of plastic or paper card
- Punch layout: 2*5
- Punch head number: 2
- Power supply: AC380V
- Power: 2 KW
- Air supply:0.6MPa
- Air consumption: 50L/min.
- Productivity: 6000~8000 cards/H
- Dimension: L1420*W750*H1600mm
- Weight: Approx.600kg
Automatic Card Punch MachineYCK-3A 3*8
Technical parameters
- Material: 0.3~1.0mm all kinds of plastic or paper card
- Punch layout: 3*8/10
- Punch head number: 3
- Power supply: AC380V
- Power: 4.5KW
- Air supply:0.6MPa
- Air consumption: 50L/min.
- Productivity: 10000~12000
- Dimension: L1650*W850*H1800mm
- Weight: Approx.900kg
Automatic Card Punch MachineYCK-4A 4*8
Technical parameters
- Material: 0.3~1.0mm all kinds of plastic or paper card
- Punch layout: 4*8/10
- Punch head number: 4
- Power supply: AC380V
- Power: 4.5KW
- Air supply:0.6MPa
- Air consumption: 50L/min.
- Productivity: 14000~18000
- Dimension: L1650*W950*H1800mm
- Weight: Approx.1000kg
Automatic Card Punch MachineYCK-5A 5*5
Technical parameters
- Material: 0.3~1.0mm all kinds of plastic or paper card
- Punch layout: 5*5
- Punch head number: 5
- Power supply: AC380V
- Power: 4.5KW
- Air supply:0.6MPa
- Air consumption: 50L/min.
- Productivity: 14000~16000
- Dimension: L1650*W950*H1800mm
- Weight: Approx.1000kg
Card Punch Machine YCK-2AE 2*5
Card Punch Machine YCK-2AE 2*5 is specially designed for small card factory. It applies PLC and GT01 Mini industrial touch screen made by Japanese PANASONIC and automatic feeder. The KEYENCE optical fiber sensor is applied to locate the punching mark with accurate moving distance. The punching head is driven with powerful motor. The mould applies imported Japanese mould steel. It is easy and simple in operation.
Card Punch Machine YCK-2AE 2*5
Technical parameters
- Material applicable: 0.3~1.0mm PVC or other plastic material
- Punch layout: 2*5
- Punch head number: 2
- Air consumption: 2 L/min
- Power supply: AC220V 50/60Hz
- Power: 850W
- Productivity: 3600 cards/hour
- Dimension: L750*W650*H1100mm
- Weight: Approx. 130 kg
Card Punch Machine YCK-2AM 2*5
Card Punch Machine YCK-2AM 2*5 is specially designed for small card factory. It is featured in manual feeding, mechanical locating and accurate moving distance. The punch mould is motivated with powerful motor. The punch mould applies imported Japanese mould steel. It is easy and simple in operation.
Card Punch Machine YCK-2AM 2*5
Technical parameters
- Material applicable: 0.3~1.0mm PVC or other plastic material
- Punch layout: 2*5
- Punch head number : 2
- Power supply: AC220V 50/60Hz
- Power:750W
- Productivity: 3000 cards/hour
- Dimension: L970*W600*H1100mm
- Weight: Approx. 130 kg
