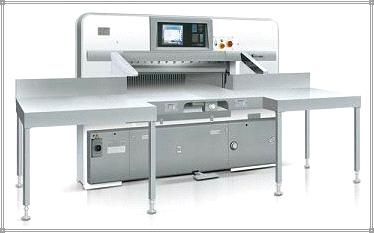

Program Control Paper Cutting Machine

FOB Price:	10,000.00 - 20,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Year
Shipping:	7 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	wood box for paper cutting machine

Specifications

1. The control system of McLantis paper cutting machine adopts original full set of computer control, with large program storage of 9999 lines of programs, and secure performance and 300,000 hours' memory. Display screen is 10.4-inch Japanese SHARP color screen, in which menu color can be adjustable.

2. USA industry computer is used as paper feeding system on McLantis paper cutting machine, for it is low in noise, adjustable in speed ranging from 6m/min to18m/min, and location precision up to ±0.01.

3. Rapid knife change device on McLantis paper cutting machine.

4. Safety system, whose raster is up to CE standard, is higher in safety. Major low voltage control part of McLantis paper cutting machine adopts imported electric appliances. Partial pivotal parts and PLC form dual protection, which maximizes safe guarantee.

Model	CUTMAC McLantis paper cutting machine
Model	920D	115D	130D	137D
Max. Cutting Width	92cm	115cm	130cm	1370cm
Max. Cutting length	110cm	115cm	130cm	1450cm
Max. Cutting height	11.5cm	16.5cm	13cm	16.5cm
Max. Clamping pressure	30000N	40000N	40000N	40000N
Cutting speed	45Time/min	45Time/min	45Time/min	45Time/min
Main motor power	3kw	4kw	4kw	4kw
Air pump motor	0.55kw	0.75kw	0.75kw	0.75kw
Sending paper motor	0.55kw	0.55kw	0.55kw	0.55kw
Weight	2100kg	3800kg	3800kg	4500kg
Overall dimensions	230×120 ×165cm	275×140 ×191cm	280×140 ×191cm	295×140 ×200cm
Width with sideway	242cm	265cm	280cm	287cm
Width with sideway	172cm	216cm	216cm	236.4cm
Length	218cm	249cm	249cm	277cm
Front table length	74.9cn	71.5cn	71.5cn	73cn
Table height	90cm	90cm	90cm	90cm
Voltage (three-phase)	V361-399	V361-399	V361-399	V361-399
Wire size	2.5mm2	2.5mm2	2.5mm2	2.5mm2
Standard Option (1) 920/115/130/137DF series: 10.4-inch Color Screen (2) 920/115/130/137DL series: 8-inch Color Screen (3) 920/115/130/137DH series: 5.7-inch Blue Screen
