COAXIAL CABLE QUAD-SHIELD , RG6,RG59,RG11,RG7 ,CCS OR CU

Shipping:	FOB QINGDAO ,CHINA or UPON REQUEST
Payment Terms:	L/C, T/T, D/P

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	305m/wooden reel or as per request

Specifications

75ohms RG6, RG11, RG59 QUAD-SHIELD DROP CABLE, COAXIAL CABLE, COAX CABLE

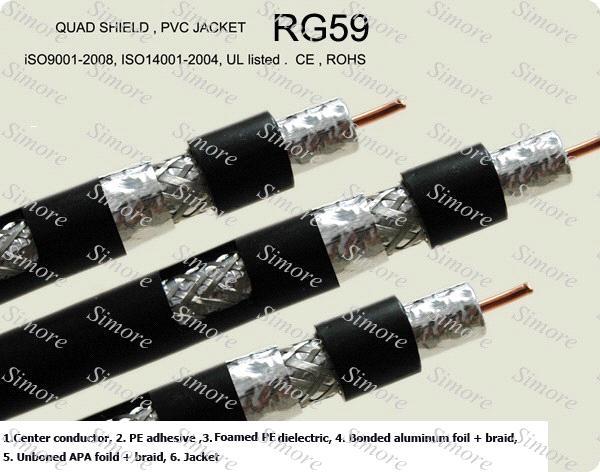

CONSTRUCTION

Center conductor: bare copper clad steel wire, 21% conductivity, 500Mpa tensile strength

Dielectric: physical high foamed PE

Outer conductor: bonded foil +60% aluminum braid + un-bonded foil + 40% braid

Jacket: black PVC

RG6 QUAD-SHIELD DIMENSIONS ,inch (mm)

Center conductor outer diameter: 0.0403+/-0.0004 inch (1.02+/-0.010mm)

Outer diameter of foamed dielectric: nominal 0.177 inch (4.49mm nominal)

Outer diameter over tape: 0.185+/-0.005 inch (4.70+/-0.13mm)

Jacket wall thickness: 0.030 inch typical (0.76 mm nominal)

Diameter over jacket: 0.295+/-0.006 inch (7.49+/- 0.15mm)

RG11 QUAD-SHIELD DIMENSIONS, inch (mm)

Center conductor outer diameter: 0.064+/- 0.001 inch (1.626+/- 0.025 mm)

Foam dielectric outer diameter; 0.280 inch nominal (7.11mm nominal)

Outer diameter over tape: 0.288+/-0.006 inch (7.32+/-0.15mm)

Jacket wall thickness: 0.037 typical (0.94mm nominal)

Diameter over jack: 0. 405+/-0.010 inch (10.29+/-0.25 mm)

RG 59 QUAD-SHIELD DIMENSIONS,INCHES (MM)

Center conductor outer diameter; 0.032+/-0.0004 inch (0.813+/-0.10mm)

Foamed dielectric outer diameter: 0.142 inch nominal (3.61mm nominal)

Outer diameter over tape: 0.150+/-0.005 inch (3.81+/-0.83 mm nominal)

Jacket wall thickness 0.032 typical (0.81mm nominal)

Jack outer diameter: 0.260+/-0.005 (6.6+/-0.13 mm)

Mechanical

Minimum bend radius (loaded): 20 times cable outer diameter

Minimum bend radius (unloaded): 10 times cable outer diameter

Temperature ratings

operating/centigrade 70

Electrical

Characterisitc impedance /ohms : 75+/-3

Velocity %: 85 nominal

Dielectric withstand volts-volts AC: 2000

Jacket spark -volts AC: 4000

Capacitance pF/m: 53.2 typical

Return loss, dB minimum 5-1000 MHz: 20

APPLICATION :

Used as branch lines or subscriber lines for CATV system .

Comply with :

ISO9001:2008 , ISO14001:2004 , RoHS, CE,UL

We are manufacturer of coaxial cable and lan cables , For more information about us , welcome to contact us .
