Zhengzhou Yufeng Heavy Machinery Co., Ltd.
China Manufacturer with main products: Ball Mill, Stone Crusher, Aac Block Production Line, Rotary Dryer, Ceramic Ball Mill, Ratory Kiln, Hammer Mill, Mineral Processing Equipment |

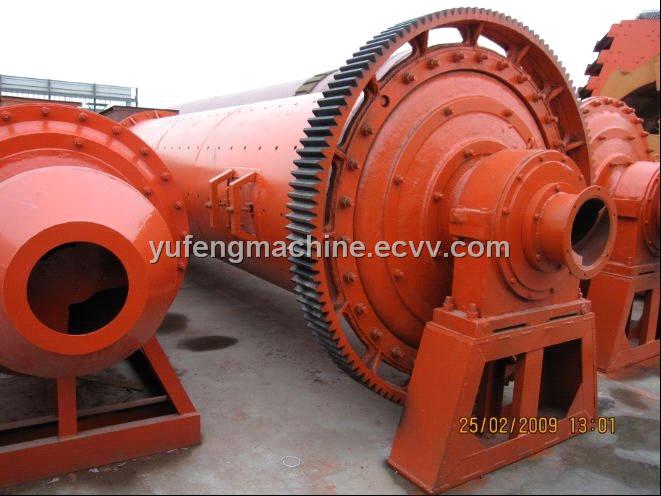

Best Mining Ball Mill for Grinding Ore
| FOB Price: | 3,000.00 - 90,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Quarter |
| Shipping: | 20days |
| Payment Terms: | L/C, T/T, D/A, D/P, Paypal, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | standard container, or in bulk |
Specifications
Ore Grinding Ball Mill Application
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type.
Ore Grinding Ball Mill Working Principle:
The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ore Grinding Ball Mill Features
1) an efficient tool for grinding many materials into fine powder.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) There are two ways of grinding: the dry way and the wet way.
4) The longer the ball mill runs, the finer the powder will be.
5) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3) There are two ways of grinding: the dry way and the wet way.
4) The longer the ball mill runs, the finer the powder will be.
5) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
6) Our ball mills is used to grind glass, create custom varnishes, make ceramic glaze, powder various chemicals.
|
Model
|
Speed of bucket
(r/min) |
Weight
of ball |
Size of feed opening
(mm)
|
size of outputing
feed (mm) |
Production
(t/h) |
Power
(kw) |
Weight
(T) |
|
900×1800
|
38
|
1.5
|
≤20
|
0.075-0.89
|
0.65-2
|
18.5
|
3.6
|
|
900×3000
|
38
|
2.7
|
≤20
|
0.075-0.89
|
1.1-3.5
|
22
|
4.6
|
|
1200×2400
|
32
|
3.8
|
≤25
|
0.075-0.6
|
1.5-4.8
|
45
|
12.5
|
|
1200×3000
|
32
|
5
|
≤25
|
0.075-0.4
|
1.6-5
|
45
|
12.8
|
|
1200×4500
|
32
|
7
|
≤25
|
0.075-0.4
|
1.6-5.8
|
55
|
13.8
|
|
1500×3000
|
27
|
8
|
≤25
|
0.075-0.4
|
2-5
|
90
|
17
|
|
1500×4500
|
27
|
14
|
≤25
|
0.075-0.4
|
3-6
|
110
|
21
|
|
1500×5700
|
27
|
15
|
≤25
|
0.075-0.4
|
3.5-6
|
132
|
24.7
|
|
1830×3000
|
24
|
11
|
≤25
|
0.075-0.4
|
4-10
|
180
|
28
|
|
1830×6400
|
24
|
23
|
≤25
|
0.075-0.4
|
6.5-15
|
210
|
34
|
|
1830×7000
|
24
|
25
|
≤25
|
0.075-0.4
|
7.5-17
|
245
|
36
|
|
2100×3000
|
23
|
15
|
≤25
|
0.075-0.4
|
6.5-36
|
155
|
34
|
|
2100×3600
|
23
|
24
|
≤25
|
0.075-0.4
|
8-43
|
210
|
42
|
|
2100×7000
|
23
|
26
|
≤25
|
0.075-0.4
|
8-48
|
280
|
50
|
|
2200×5500
|
21
|
30
|
≤25
|
0.075-0.4
|
10-22
|
370
|
48.5
|
|
2200×6500
|
21
|
30
|
≤25
|
0.075-0.4
|
14-26
|
280
|
52.8
|
|
2200×7500
|
21
|
33
|
≤25
|
0.075-0.4
|
16-29
|
475
|
56
|
|
2400×3000
|
21
|
23
|
≤25
|
0.075-0.4
|
7-50
|
245
|
54
|
|
2400×4500
|
21
|
30
|
≤25
|
0.075-0.4
|
8.5-60
|
320
|
65
|
