Adhesive thermal silicon pad

FOB Price:	1.00 - 20.00 USD/Piece
Supply Ability:	20,000 Piece/Pieces per Day
Shipping:	3 to 7days
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

ab adhesive

Price:5.50-8.00 USD/Kilogram

Min. Order:1 Kilogram

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Carton box

Specifications

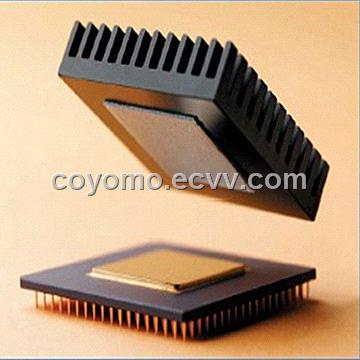

The HCB (SCB) series is adhesive thermal conductive silicon pad, mainly for the thermal conductivity between the heating device and the heat sink or the product outer

covings without fastening devices.

Features & benefits:

●Ultra-stickiness

●Without fastening devices

●Electrically isolating

● Meet with the environmental requirements of ROHS and UL

Typical applications:

●LED light

●Power conversion equipment

●Between the semiconductor or magnetic body and heat sink

●HID ballast

●Household appliances

Physical properties:

Test item	Test method	Unit	HCB150 Test value	SCB150 Test value
Color	Visual		Grey	Grey
Thickness	ASTM D374	Mm	0.5 to 10.0	0.5 to 1.5
Specific Gravity	ASTM D792	g/cc	1.8±0.1	1.6±0.1
Hardness	ASTM D2240	Shore C	18±5 to 40±5	70±5
Tensile Strength	ASTM D412	kg/cm²	8	8
Tensile Strength	ASTM D412	Pa	5.88*10⁹	5.88*10⁹
Continuous Use Temp	EN 344	℃	-40 to +220	-40 to +220
Volume Resistivity	ASTM D257	Ω-CM	1.0*10¹¹	1.0*10¹¹
Breakdown Voltage	ASTM D149	KV/mm	4	4
Flame Rating	UL-94		V-0	V-0
Conductivity	ASTM D5470	w/m-k	1.5	1.5

Configurations available: 200mm*400mm, 300mm*300mm, specific size could be provided according to your requirements.
